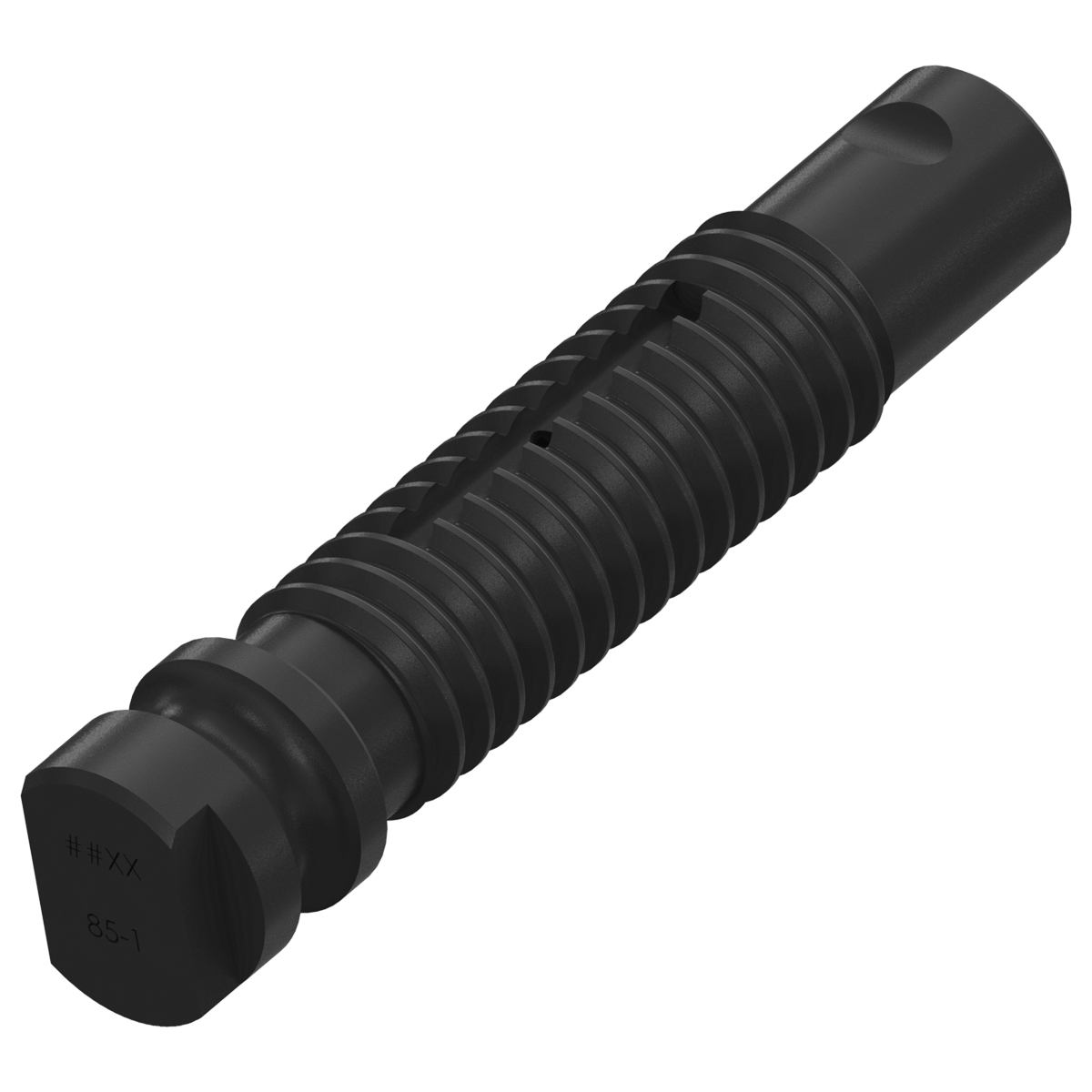

AM85-1 - Spring Pin, Threaded
AM85-1 — Spring Pin, Threaded
| Item | Description |
|---|---|
| ATRO # | AM85-1 |
| Category | Suspension |
| Description | Spring Pin, Threaded |
| Shipping Weight | 2.305 lbs |
| UPC Code | 751354047974 |
| Part Dimensions | 7.03 |
| Outside Diameter — Large | 1.493 |
| Outside Diameter — Small | 1.179 |
| Qty Per Vehicle | Varies |

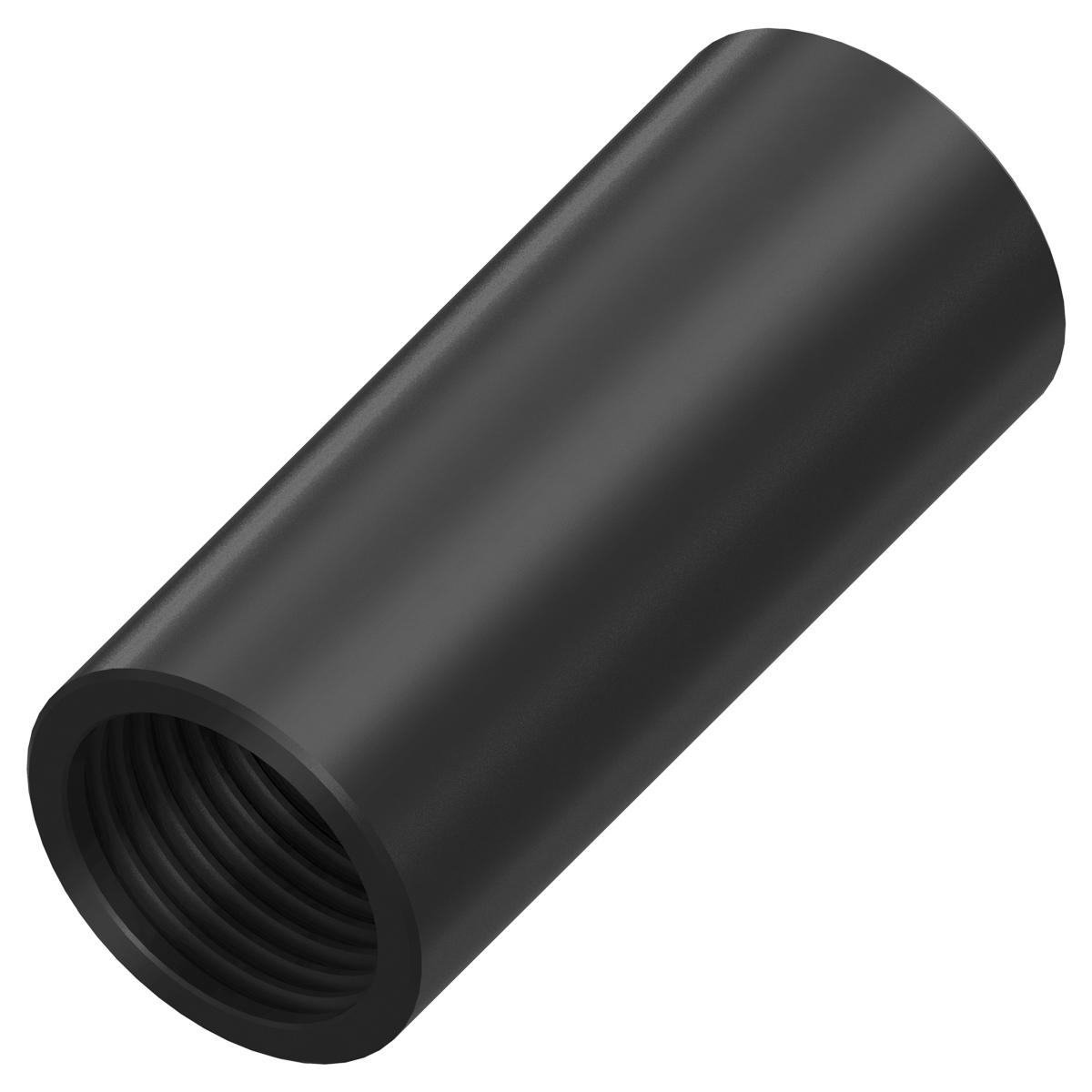

| Misc. Specs | Threaded - Use with ATB78 M33.5X4 90° Grease fitting on smaller diameter end |
| Documentation | |
| Warranty | U.S./Canada 3-Year; Export 1-Year |
Parts Cross Reference
(click column headings to sort)
| OEM/Brand | Cross Reference | Application Notes |
|---|---|---|
| Automann | M5450 | |
| Mack | 10QK3105M | Pin VN series; Mack CXN (Vision), CHU, CHN, CXP, CXU (Pinnacle), GU (Granite), TD (Titan) |
| Stemco | BSP85-1 | |
| Volvo | 1076334 | Pin 420/610/660/770 VN; VL Series Four Spring |
| Volvo | 1614229 | |
| Volvo | 24639359 |
