SP96-11026 | Threaded Pin & Spring Eye Bushing Kit

SP96-11026 - Threaded Pin & Spring Eye Bushing Kit

SP96-11026 — Threaded Pin & Spring Eye Bushing Kit

{{exactOrNear}} to {{searchTerm}}

Item	Description
ATRO #	SP96-11026
VMRS #
Category	Suspension
Description	Threaded Pin & Spring Eye Bushing Kit
Availability
Your Price ($USD)
Shipping Weight	3.2 lbs
UPC Code	751354032963
Part Dimensions	Bushing Length: 105mm
Inside Diameter
Outside Diameter — Reference	Bushing OD: 45mm
Outside Diameter — Large
Outside Diameter — Small
Qty Per Vehicle	2
Contains Bushings

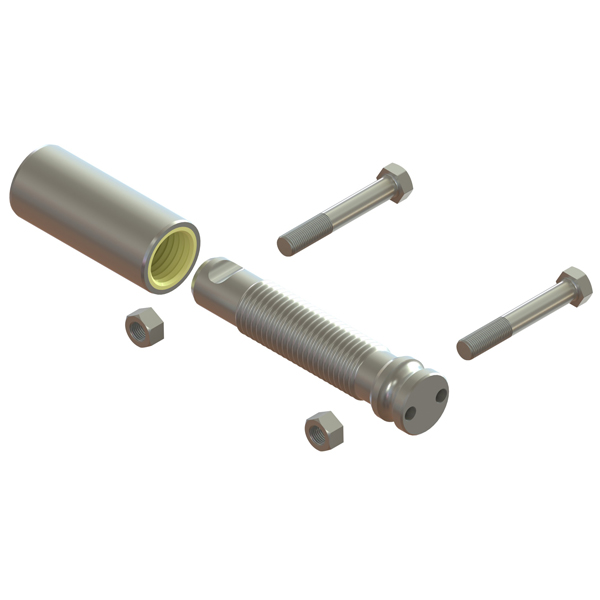

Includes Kit Components	(1) Spring Eye Bushing (1) Threaded Pin
Misc. Specs	Pin Groove: 142mm c-c
Install Tool	PT91118
Removal Tool
Tool Handle	PT91500
Misc. Tool	PT96-53100
Documentation	Installation Guide
Warranty	U.S./Canada 3-Year; Export 1-Year

Additional specs or content for this part go here.

Enter the Custom Torque Rod C-C length: (example 29 1/2)

/ "

Add To Cart

Where to Buy

Back to Category

Parts Cross Reference

OEM/Brand	Cross Reference	Application Notes
Automann	M5450	Pin
Automann	MTB180	Bushing
Dayton Parts	TB-80	Bushing
Dayton Parts	327-533	Near Cross Spring Pin
Dayton Parts	TB-78	Bushing
Flagg	B1491-96	Pin
Flagg	TB78	Bushing
Mack	10QK3113M	Pin VN series; Mack CXN (Vision), CHU, CHN, CXP, CXU (Pinnacle), GU (Granite), TD (Titan)
Mack	10QK3114M	Bushing VN series; Mack CXN (Vision), CHU, CHN, CXP, CXU (Pinnacle), GU (Granite), TD (Titan)
Mack	10QK3115M	Bushing VN series; Mack CXN (Vision), CHU, CHN, CXP, CXU (Pinnacle), GU (Granite), TD (Titan)
Mack	1QK3112M	Pin VN series; Mack CXN (Vision), CHU, CHN, CXP, CXU (Pinnacle), GU (Granite), TD (Titan)
Stemco	BSP831	Pin
Stemco	BSP851	Pin
Volvo	1075723	Pin VN series; Mack CXN (Vision), CHU, CHN, CXP, CXU (Pinnacle), GU (Granite), TD (Titan)
Volvo	1076334	Pin VN series; Mack CXN (Vision), CHU, CHN, CXP, CXU (Pinnacle), GU (Granite), TD (Titan)
Volvo	20747781	Pin VN series; Mack CXN (Vision), CHU, CHN, CXP, CXU (Pinnacle), GU (Granite), TD (Titan)
Volvo	V1075724	Bushing VN series; Mack CXN (Vision), CHU, CHN, CXP, CXU (Pinnacle), GU (Granite), TD (Titan)
Volvo	1075724	Bushing VN series; Mack CXN (Vision), CHU, CHN, CXP, CXU (Pinnacle), GU (Granite), TD (Titan)
Volvo	20526026	Bushing VN series; Mack CXN (Vision), CHU, CHN, CXP, CXU (Pinnacle), GU (Granite), TD (Titan)
Volvo	1075726	Bushing VN series; Mack CXN (Vision), CHU, CHN, CXP, CXU (Pinnacle), GU (Granite), TD (Titan)
Volvo	1075726	Bushing VN series; Mack CXN (Vision), CHU, CHN, CXP, CXU (Pinnacle), GU (Granite), TD (Titan)
Volvo	20409623	Bushing VN series; Mack CXN (Vision), CHU, CHN, CXP, CXU (Pinnacle), GU (Granite), TD (Titan)
Volvo	85134671	Bushing VN series; Mack CXN (Vision), CHU, CHN, CXP, CXU (Pinnacle), GU (Granite), TD (Titan)
Volvo	85134672	Bushing VN series; Mack CXN (Vision), CHU, CHN, CXP, CXU (Pinnacle), GU (Granite), TD (Titan)
