SKS70020 - Spiral Kit - K700T
SKS70020 — Spiral Kit - K700T
| Item | Description |
|---|---|
| ATRO # | SKS70020 |
| Category | Steering |
| Description | Spiral Kit - K700T |
| Shipping Weight | 34.65 lbs |
| UPC Code | 751354050127 |
| Qty Per Vehicle | 1 |

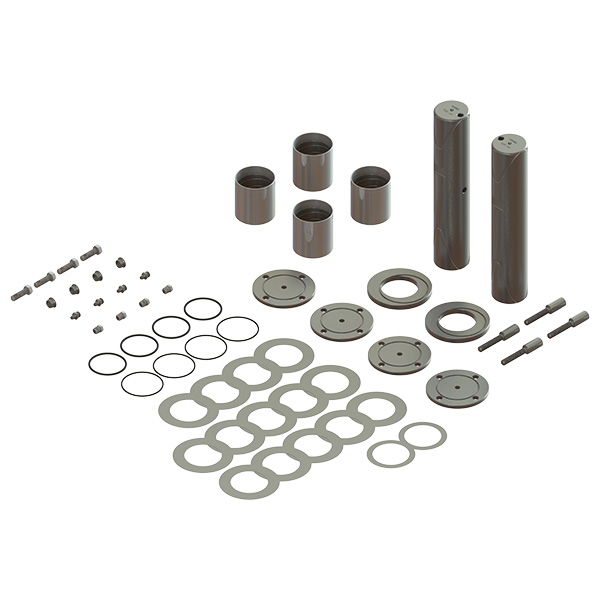

| Includes Kit Components | Kingpin (2) Bushing (4) End Plate EP700T-02 (4) Bearing BRT700T (2) Lock Pin LP700T (4) Shim and Hardware Kit BK700T |
| Misc. Specs | Both Kingpins = 11.30"XØ2.248" - Double Lock Opposite Side NOTE: For 2003+ this kit uses Lock Pins instead of Screw-In Locking Bolts NOTE: For Pre 2003 with Screw-In Lock Bolts, Use Thread Lock and Torque to 20 ft/lbs. |
| Documentation | |
| Warranty | U.S./Canada 4-Year; Export 1-Year |
Parts Cross Reference
(click column headings to sort)
| OEM/Brand | Cross Reference | Application Notes |
|---|---|---|
| Automann | 460.207B | Bronze Bushing |
| Automann | 460.207E | Steel Bushing |
| Ingersoll | 700040 | |
| Meritor | R202057 | Steel Bushing |
| Stemco | K700T | Steel Bushing |
