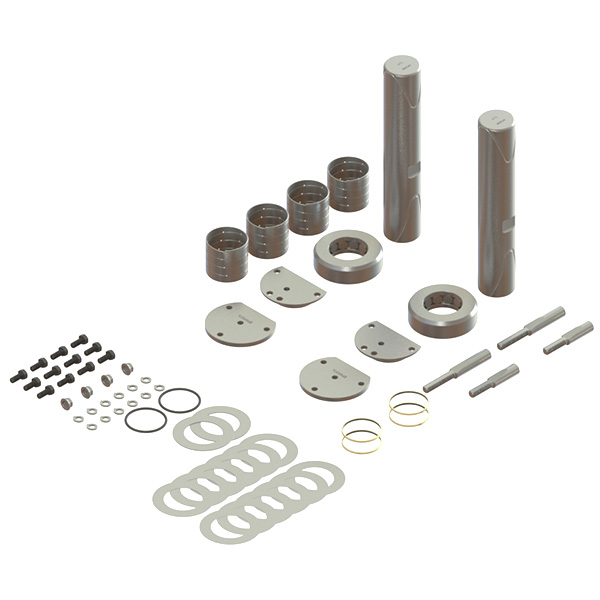

SKS20018 | Spiral Kit - K200R

SKS20018 - Spiral Kit - K200R

{{exactOrNear}} to {{searchTerm}}

Item	Description
ATRO #	SKS20018
VMRS #
Category	Steering
Description	Spiral Kit - K200R
Availability
Your Price ($USD)
Shipping Weight	28.5 lbs
UPC Code	751354043099
Part Dimensions
Inside Diameter
Outside Diameter — Reference
Outside Diameter — Large
Outside Diameter — Small
Qty Per Vehicle
Contains Bushings	Steel Spiral No Ream Kit

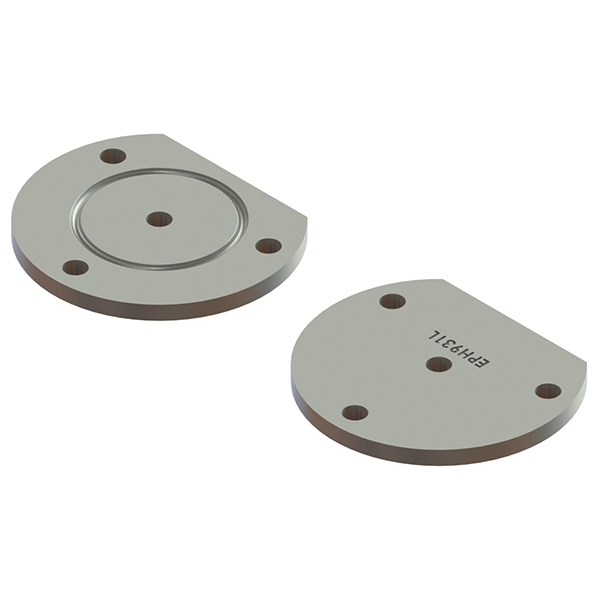

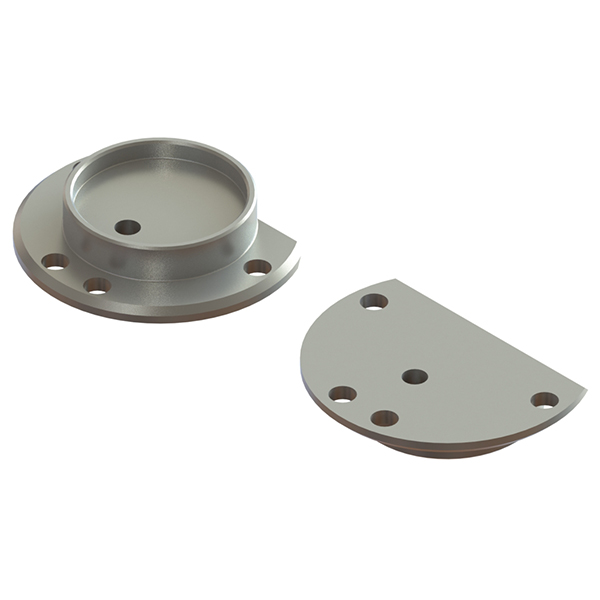

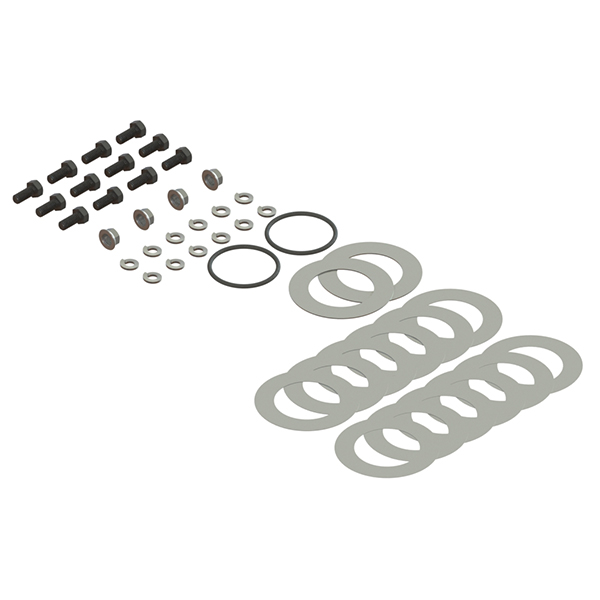

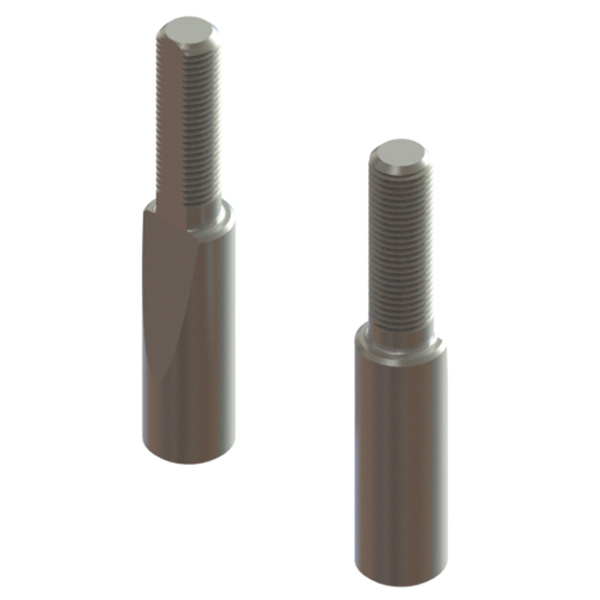

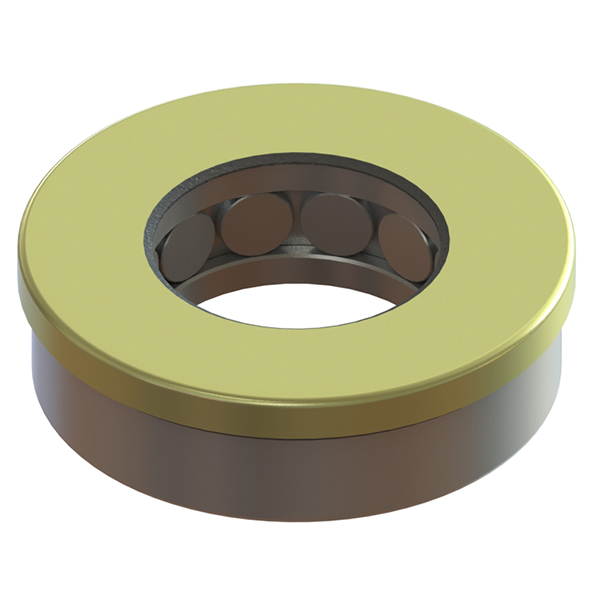

Includes Kit Components	Kingpin (2) Bushing (4) End Plate EP200R (2), EPH931L (2) Bearing BRT208 (2) Seal Kit SLH931L-CON (1) Lock Pin LPH931L-L (2), LP981R-S (2) Shim and Hardware Kit BK200R (1)
Misc. Specs	Kingpin=10.79"X1.999" Double Lock Opposite Side Fitment: Rockwell/Meritor 600 Series 18000# MFS-18133Ank; 600 Series 20000# MFS-20133Ank
Install Tool	Seal Driver=SKPTH931L
Removal Tool
Tool Handle
Misc. Tool	Long T-Handle=SKT060L, Short T Handle=SKT060S
Documentation	Product Announcement
Warranty	U.S./Canada 3-Year; Export 1-Year

Additional specs or content for this part go here.

Enter the Custom Torque Rod C-C length: (example 29 1/2)

/ "

Parts Cross Reference
