SKS10209 | Spiral Kit - K102I

SKS10209 - Spiral Kit - K102I

{{exactOrNear}} to {{searchTerm}}

Item	Description
ATRO #	SKS10209
VMRS #
Category	Steering
Description	Spiral Kit - K102I
Availability
Your Price ($USD)
Shipping Weight	11 lbs
UPC Code	751354041859
Part Dimensions
Inside Diameter
Outside Diameter — Reference
Outside Diameter — Large
Outside Diameter — Small
Qty Per Vehicle
Contains Bushings	Steel Spiral No Ream Kit

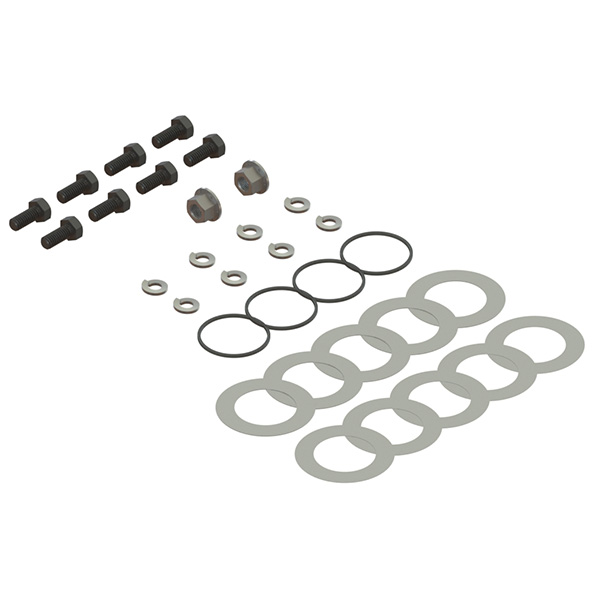

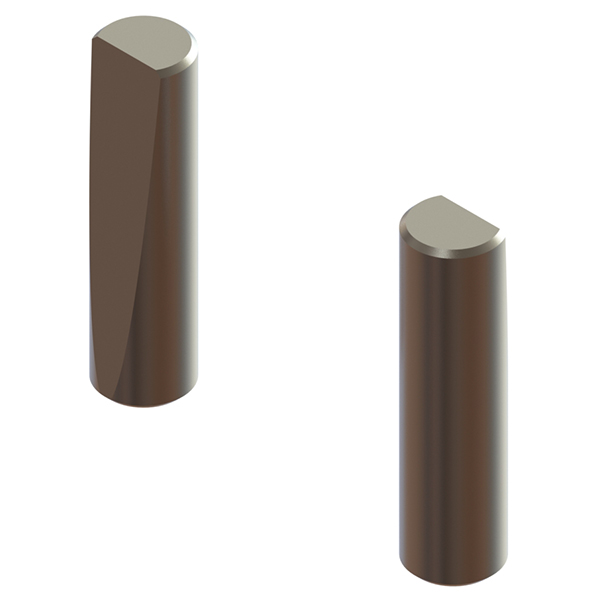

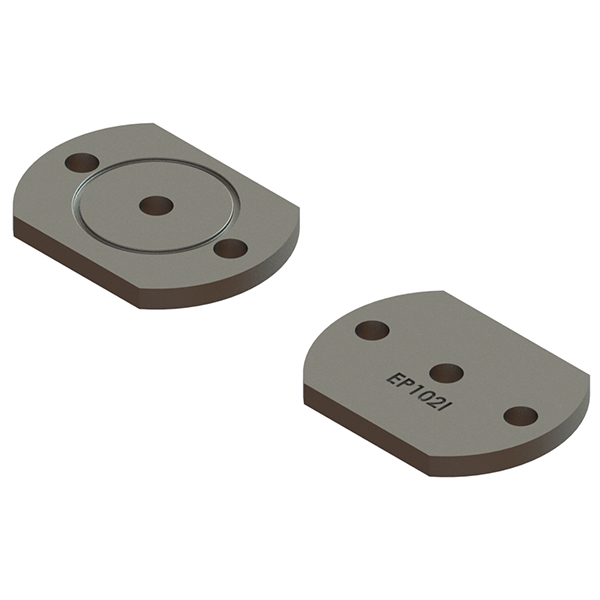

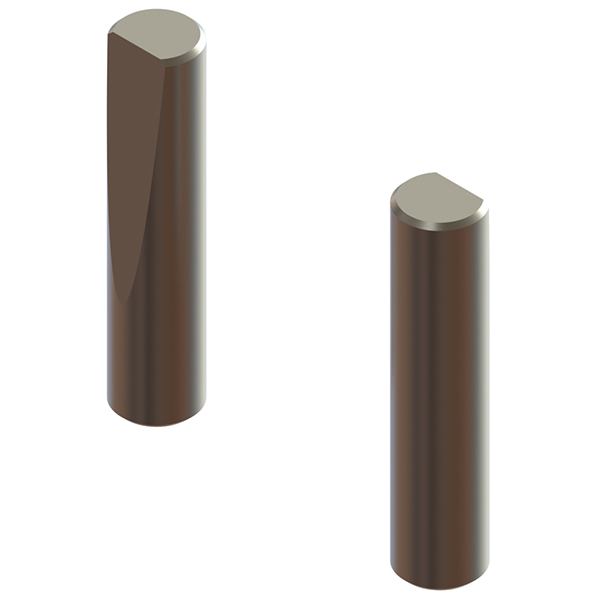

Includes Kit Components	Kingpin (2) Bushing (4) End Plate EP102I (4) Bearing BRT1390 (2) Seal Kit SL102I-CON (1) Lock Pin LP102I-A (2); LP102I-B (2) Lock Pin LP102I-T (2) Shim and Hardware Kit BK102I
Misc. Specs	Kingpin=7.97"X1.359" - Double Lock Opposite Side Fitment: International/Navistar, 1989 to date, Codes: 8200# FA-101 FA-104, 8000# I-80S, I-80SG, 02-ADB, 02-ADV, 6000#, I-60S (02-ADA), 8000#, I-80S (02-ADB), Spicer/Dana/Eaton, 02 Codes, I Codes, Codes: 6000# 02-ADA, 8000# 02-ADB, 02-ADV, 02-ADW, 6000# I-60S, I-60SG, I-61, 8000# I-80S I-80SG,02 Codes, I Codes, Before 10/2002, Codes: 8000# 02-AEM, 8000# D800, Thomas ER-Series School Bus chassis
Install Tool	Long T-Handle=SKT060L, Short T Handle=SKT060S
Removal Tool
Tool Handle
Misc. Tool	Seal Driver=SKPT102I
Documentation
Warranty	U.S./Canada 3-Year; Export 1-Year

Additional specs or content for this part go here.

Enter the Custom Torque Rod C-C length: (example 29 1/2)

/ "

Parts Cross Reference
