SKB61472 | Bronze King Pin Kit - R201614

SKB61472 - Bronze King Pin Kit - R201614

{{exactOrNear}} to {{searchTerm}}

Item	Description
ATRO #	SKB61472
VMRS #
Category	Steering
Description	Bronze King Pin Kit - R201614
Availability
Your Price ($USD)
Shipping Weight	19.07 lbs
UPC Code	751354048285
Part Dimensions
Inside Diameter
Outside Diameter — Reference
Outside Diameter — Large
Outside Diameter — Small
Qty Per Vehicle	1
Contains Bushings

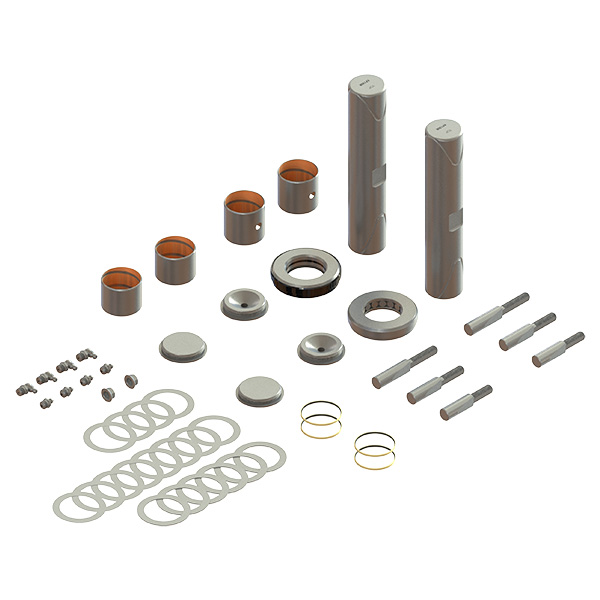

Includes Kit Components	Kingpin (2) Bushing BB122E (2); Bushing BB130R-S (2) Bearing BRT1822s (1); Bearing BRF1822S (1) End Plate EP381R (2); End Plate EP130R (2) Lock Pin LPG931R-L (2); LP981R-S (2); LPH931L-S (2) Shim and Hardware kit BK61472 (1) Seal Kit SL122E-Con (1)
Misc. Specs	Friction Bearing installs on left side; Roller Bearing installs on right side Kingpin=9.05"X1.794"; Double Lock Opposite Side Fitments: MFS13 (non plus) and MFS+ axle series
Install Tool	Bushing and Seal Driver=SKPT122E
Removal Tool
Tool Handle
Misc. Tool
Documentation	Product Announcement
Warranty	U.S./Canada 4-Year; Export 1-Year

Additional specs or content for this part go here.

Enter the Custom Torque Rod C-C length: (example 29 1/2)

/ "

Parts Cross Reference

OEM/Brand	Cross Reference	Application Notes
Meritor	R201614
