PL1118 | Torque Rod Bushing

PL1118 - Torque Rod Bushing

{{exactOrNear}} to {{searchTerm}}

Item	Description
ATRO #	PL1118
VMRS #
Category	Torque Rod
Description	Torque Rod Bushing
Availability
Your Price ($USD)
Shipping Weight	.53 lbs
UPC Code	751354030600
Part Dimensions
Inside Diameter	7/8"
Outside Diameter — Reference
Outside Diameter — Large	2 5/16"
Outside Diameter — Small	1 3/4"
Qty Per Vehicle
Contains Bushings
Includes Kit Components	Sleeve Length=3.00"

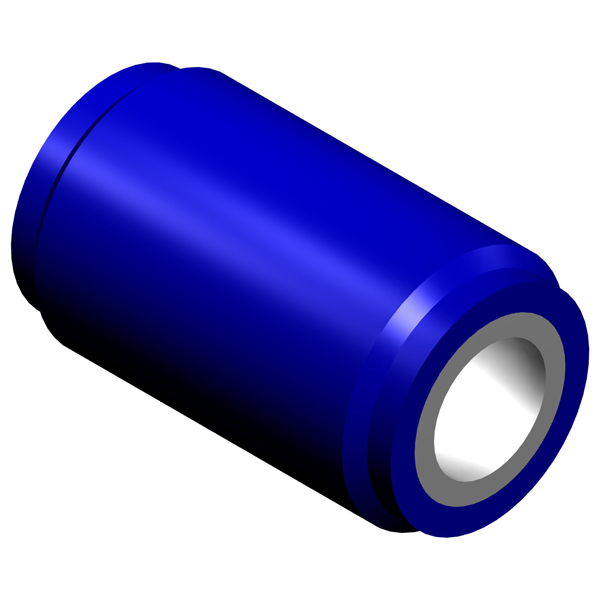

Misc. Specs	2-piece not identical to OE bushing appearance; Outer rims added to retain bushing in rod; For 1-piece design see UB30000
Install Tool
Removal Tool
Tool Handle
Misc. Tool
Documentation
Warranty	U.S./Canada 3-Year; Export 1-Year

Additional specs or content for this part go here.

Enter the Custom Torque Rod C-C length: (example 29 1/2)

/ "

Parts Cross Reference

OEM/Brand	Cross Reference	Application Notes
Automann	TRB6004
Automann	TRB6004UB
Automann	TRB6004SUB
Binkley	09729-01	Duralite 9000 Series Trailer Four Spring
Dana	L1032	62/68 Series
Dayton Parts	39400016
Dayton Parts	321-153
Dayton Parts	321-153U	Exact Cross
Dyco	DT1607
Dyco	D073
Dyco	D-73
Dyco	D73
Energy Suspension	90.701
Euclid	E-1980
Euclid	E-7520
Flagg	R129
Flagg	R129UB
Gaff	GAFF15013	Exact Cross
Hendrickson Auxiliary Axle	A1712	Q-TR; QS; QT; QU; Turner HLQ-AH/SR; Q-TRU Leaf Spring Lift Axle
International	34734C1	Tri-Lite Trailer Four Spring
International	347374C1	Near Cross One Piece Bushing
Meritor	R301980	RHP11/MPA
Meritor	R307520	RHP11/MPA
Reyco	09729-01	Multiple applications
TransPro	A-1712	HLQ-AH/SR
TransPro	0022-00	HLQ-AH/SR
World America	WA04-5018	Near Cross One Piece Bushing
