AS3B-8033 - Air Spring, Triple Convoluted
AS3B-8033 — Air Spring, Triple Convoluted
| Item | Description |
|---|---|
| ATRO # | AS3B-8033 |
| Category | Suspension |
| Description | Air Spring, Triple Convoluted |
| Shipping Weight | 16.5 lbs |
| UPC Code | 751354050776 |
| Qty Per Vehicle | 2 |
| Documentation | |
| Warranty | U.S./Canada 3-Year; Export 1-Year |

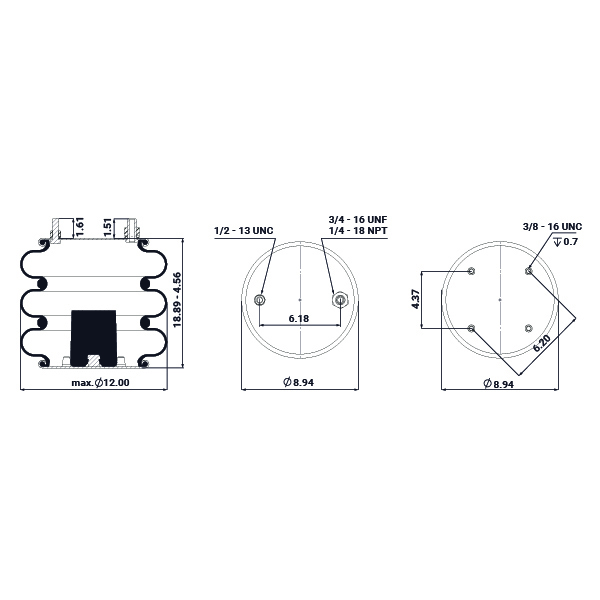

AS3B-8033 Air Spring Technical Data
| Item | Description |
|---|---|
| Pallet Quantity | 36 |
| Type | Triple Convolute |
| Piston Material | N/A |
| Bumper | Yes |
| Bracket | No |

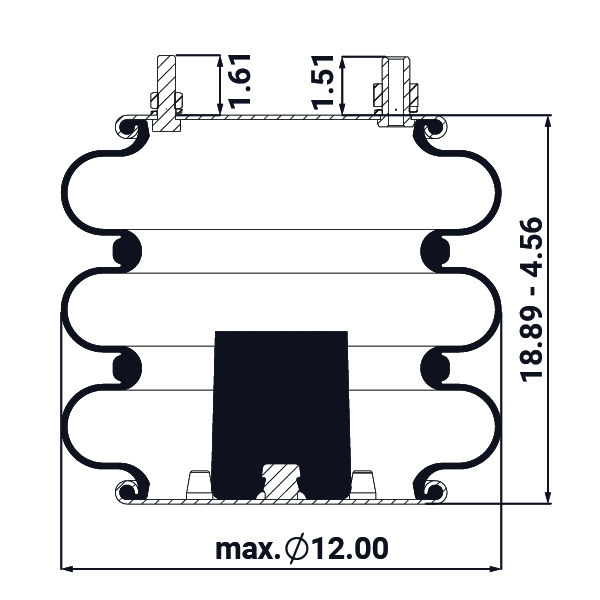

| Diameter Max (in) | 12 |
| Height Max (in) | 18.9 |
| Height Min (in) | 4.57 |

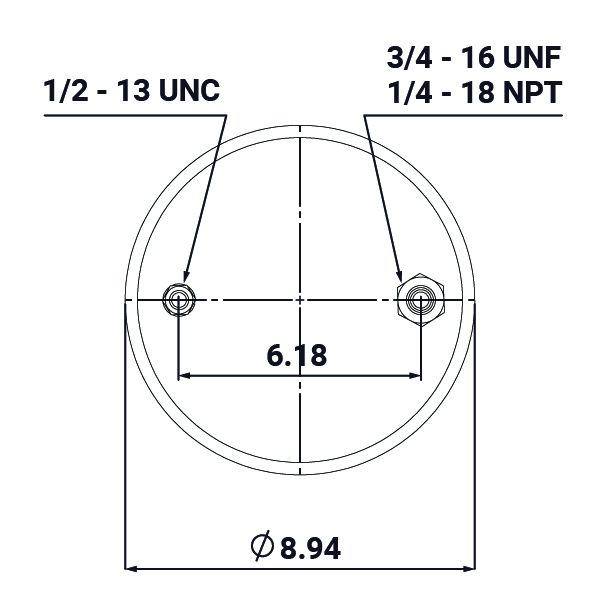

| Top Plate Ø (in) | 8.9 |
| Top Plate Hole/Stud Quantity | 2 |
| Top Plate C to C (in) | 6.2 |

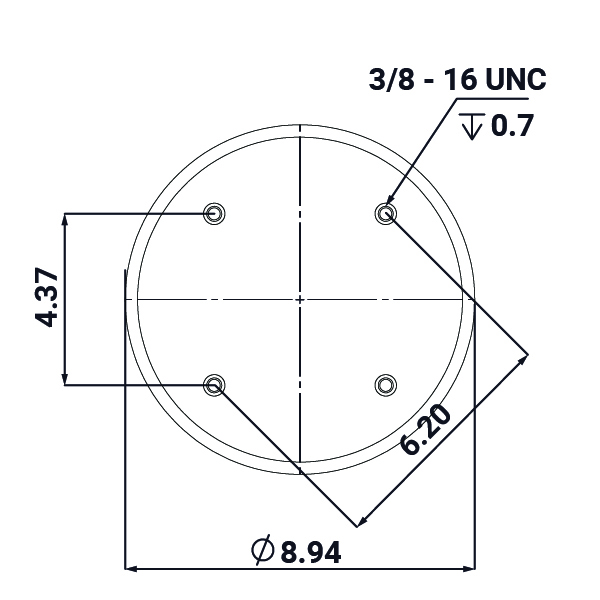

| Piston/Bottom Plate Ø (in) | 8.9 |
| Piston/Bottom Plate Alignment | 45° |
| Piston/Bottom Plate Hole/Stud Quantity | 4 |
| Piston/Bottom Plate C to C (in) | 4.4 |
_01.jpg "AS3B-8033")
_02.jpg "AS3B-8033")
_03.jpg "AS3B-8033")
_04.jpg "AS3B-8033")
Parts Cross Reference
(click column headings to sort)
| OEM/Brand | Cross Reference | Application Notes |
|---|---|---|
| Automann | SP3B22R-8033 | |
| Continental | FT 330-29 525 | |
| Continental | 64571 | |
| Firestone | W01-358-8033 | |
| Fleetpride | AS8033 | |
| Goodyear | 3B12-312 | |
| Hendrickson | 003316 | |
| Hendrickson | B-14487 | |
| Hendrickson | S14487 | |
| Load Guard | SC2784 | |
| Sampa | SP 558033 | |
| Triangle | AS-4525 | |
| TRP Parts | AS80330 | |
| Watson Chalin | AS-0168-G |
