AS3B-8027 - Air Spring, Triple Convoluted
AS3B-8027 — Air Spring, Triple Convoluted
| Item | Description |
|---|---|
| ATRO # | AS3B-8027 |
| Category | Suspension |
| Description | Air Spring, Triple Convoluted |
| Shipping Weight | 16 lbs |
| UPC Code | 751354050837 |
| Qty Per Vehicle | 2 |
| Documentation | |
| Warranty | U.S./Canada 3-Year; Export 1-Year |
AS3B-8027 Air Spring Technical Data
| Item | Description |
|---|---|
| Pallet Quantity | 36 |
| Type | Triple Convolute |
| Piston Material | N/A |
| Bumper | Yes |
| Bracket | No |
| Diameter Max (in) | 12 |
| Height Max (in) | 18.9 |
| Height Min (in) | 3.9 |

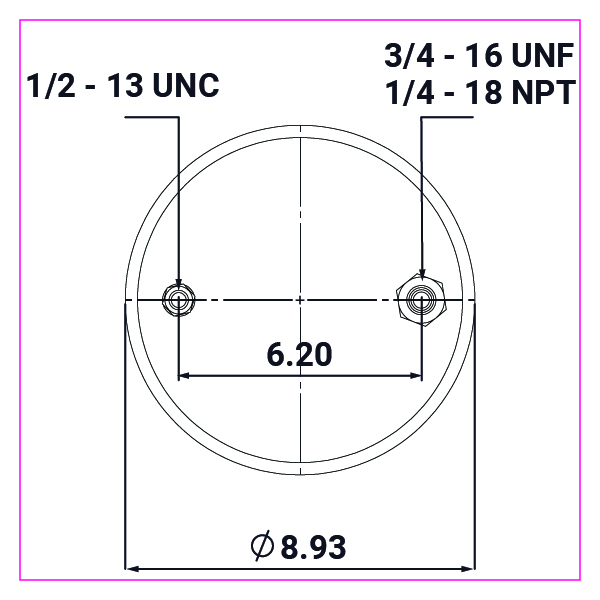

| Top Plate Ø (in) | 8.9 |
| Top Plate Hole/Stud Quantity | 2 |
| Top Plate C to C (in) | 6.2 |

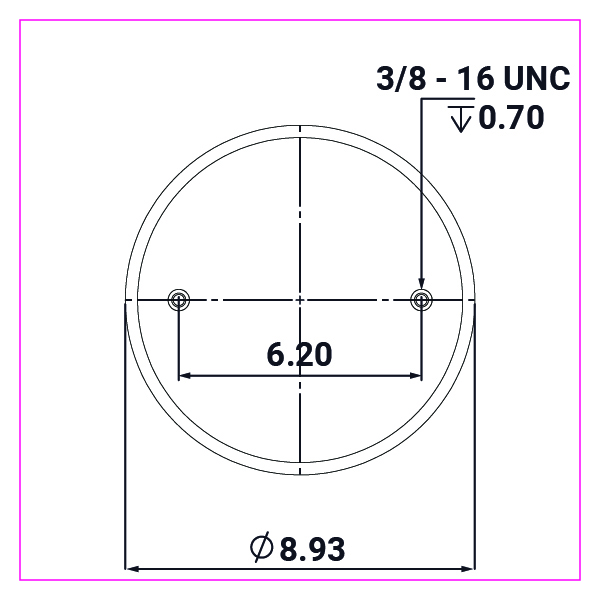

| Piston/Bottom Plate Ø (in) | 8.9 |
| Piston/Bottom Plate Alignment | Parallel |
| Piston/Bottom Plate Hole/Stud Quantity | 2 |
| Piston/Bottom Plate C to C (in) | 6.2 |

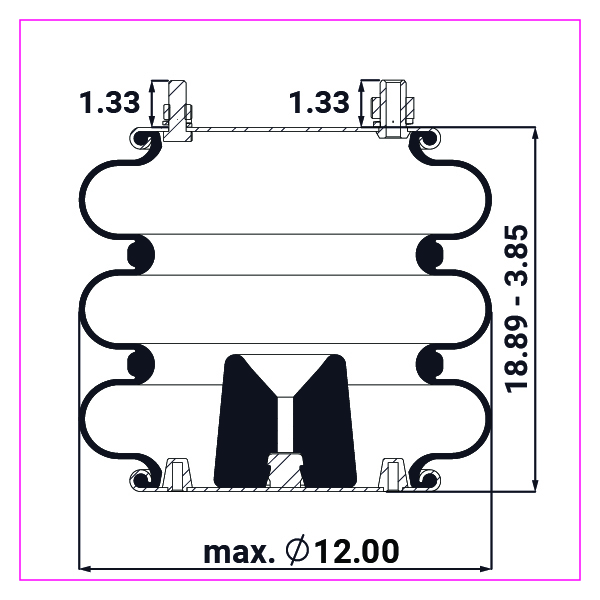

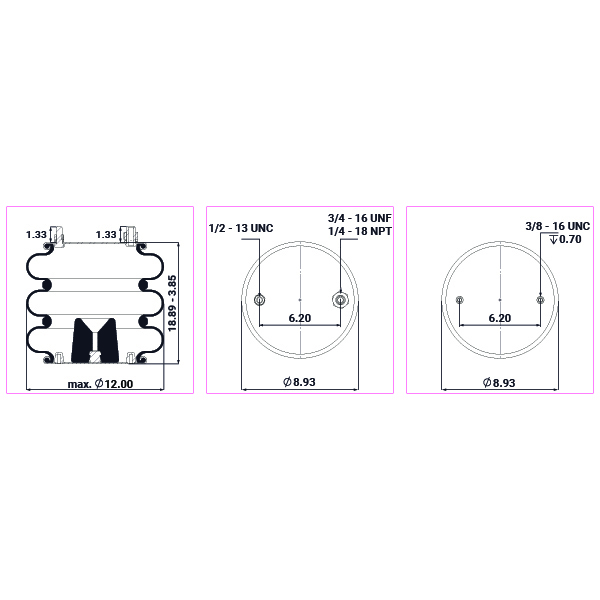

_01.jpg "AS3B-8027")
_02.jpg "AS3B-8027")
_03.jpg "AS3B-8027")
_04.jpg "AS3B-8027")
Parts Cross Reference
(click column headings to sort)
| OEM/Brand | Cross Reference | Application Notes |
|---|---|---|
| Automann | SP3B22R-8027 | |
| Continental | FT 330-29 466 | |
| Continental | 64565 | |
| Firestone | W01-358-8027 | |
| Fleetpride | AS8027 | |
| Goodyear | 3B12-310 | |
| Meritor | 200117 | |
| Meritor | 200117 | |
| Road Choice | AS8027 | |
| Sampa | SP 558027 | |
| Triangle | AS-4466 | |
| TRP Parts | AS80270 |
