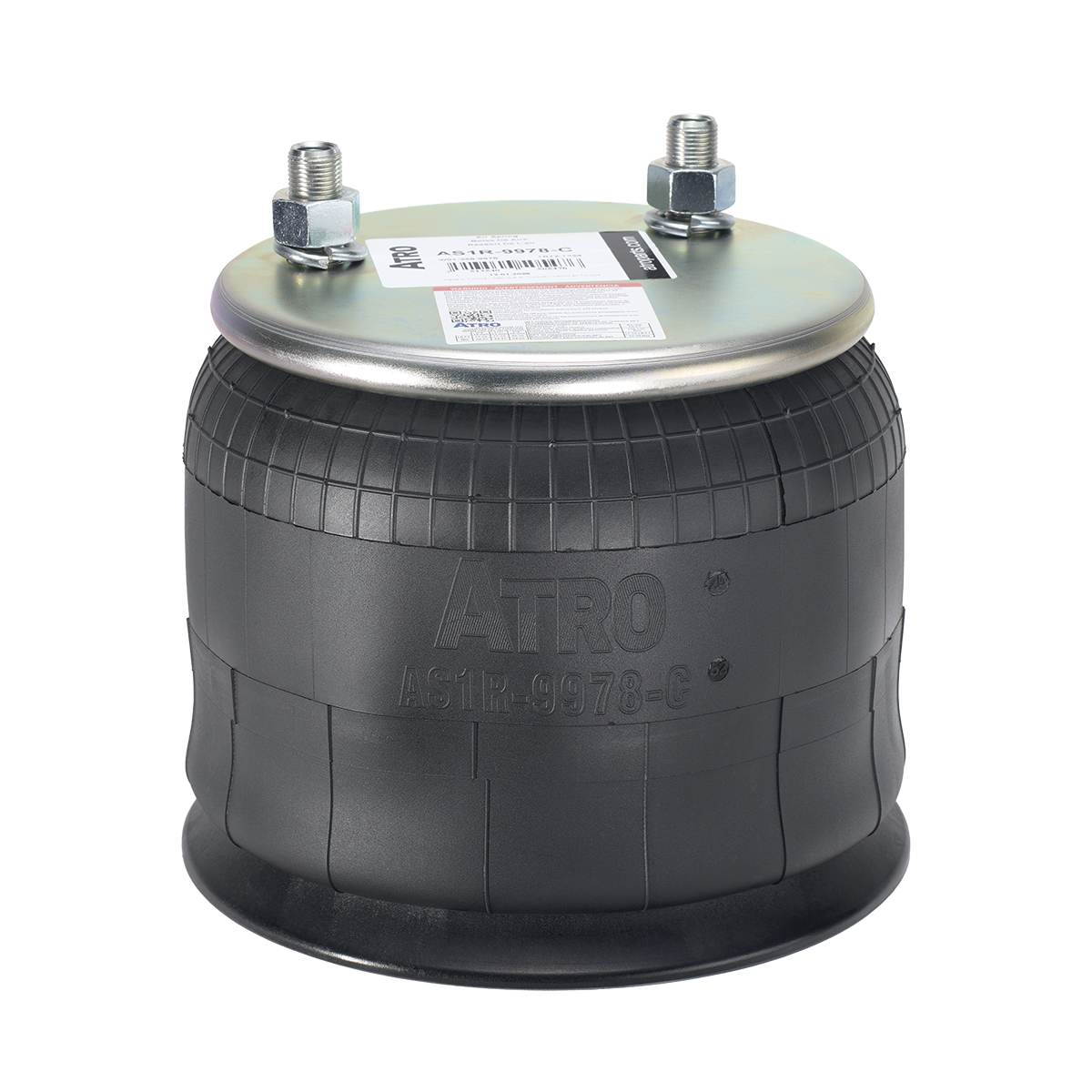

AS1R-9978-C - Air Spring, Rolling Lobe
AS1R-9978-C — Air Spring, Rolling Lobe
| Item | Description |
|---|---|
| ATRO # | AS1R-9978-C |
| Category | Suspension |
| Description | Air Spring, Rolling Lobe |
| Shipping Weight | 14 lbs |
| UPC Code | 751354050547 |
| Qty Per Vehicle | 2 |
| Documentation | |
| Warranty | U.S./Canada 3-Year; Export 1-Year |
AS1R-9978-C Air Spring Technical Data
| Item | Description |
|---|---|
| Pallet Quantity | 28 |
| Type | Rolling Lobe |
| Piston Material | Composite |
| Bumper | Yes |
| Bracket | No |
| Diameter Max (in) | 12 |
| Height Max (in) | 19.6 |
| Height Min (in) | 7.9 |
| Top Plate Ø (in) | 8.9 |
| Top Plate Hole/Stud Quantity | 2 |
| Top Plate C to C (in) | 5.5 |
| Piston/Bottom Plate Ø (in) | 10.2 |
| Piston/Bottom Plate Alignment | Parallel |
| Piston/Bottom Plate Hole/Stud Quantity | 1 |
| Piston/Bottom Plate C to C (in) | N/A |

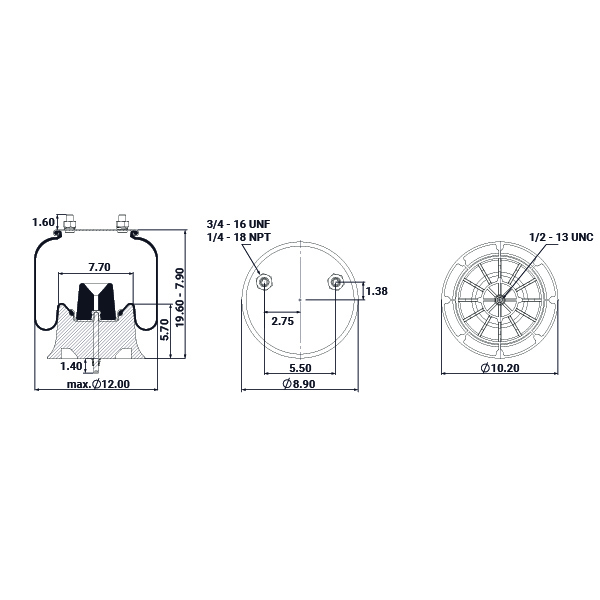

_01.jpg "AS1R-9978-C")

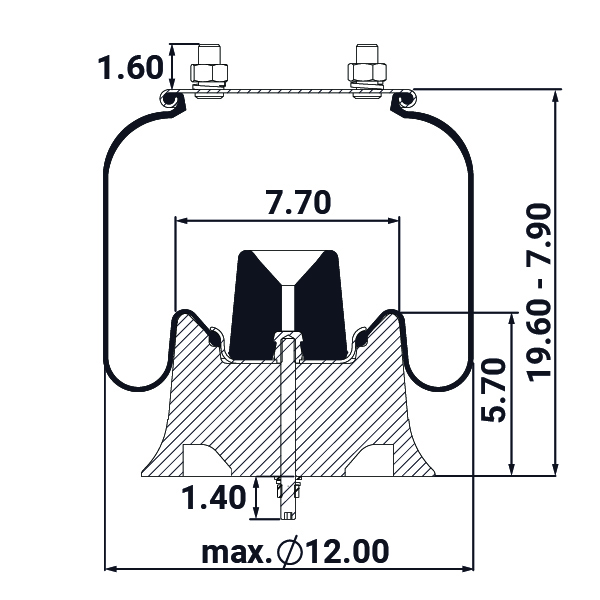

_02.jpg "AS1R-9978-C")

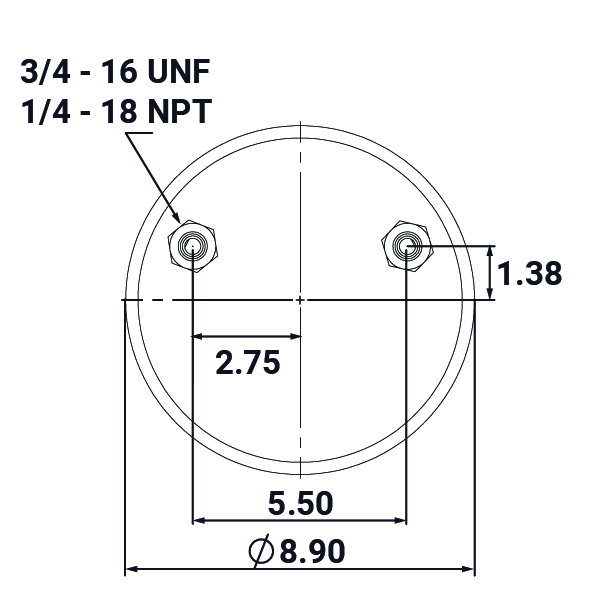

_03.jpg "AS1R-9978-C")

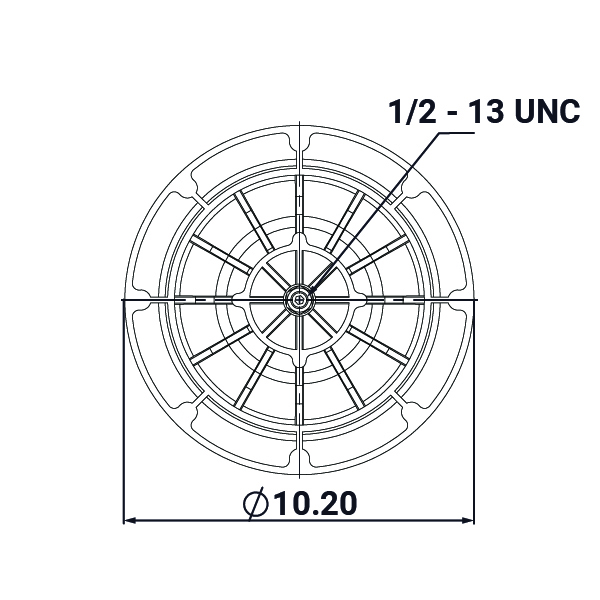

_04.jpg "AS1R-9978-C")
Parts Cross Reference
(click column headings to sort)
| OEM/Brand | Cross Reference | Application Notes |
|---|---|---|
| Automann | AB1DK23I-A959 | |
| Continental | 67588 | Composite |
| Continental | 9 10-14 P 959 | Composite |
| Firestone | W01-358-9978 | Composite |
| Fleetpride | AS9978 | |
| Goodyear | 1R12-1224 | Composite |
| Hendrickson | S-28929 | VANTRAAX 40K (After Jan 2008) |
| Road Choice | AS9978 | |
| Sampa | SP 559978-KA | Aluminum |
| Sampa | SP 559978-KP | Composite |
| Triangle | AS-8959 | |
| TRP Parts | AS99780 |
