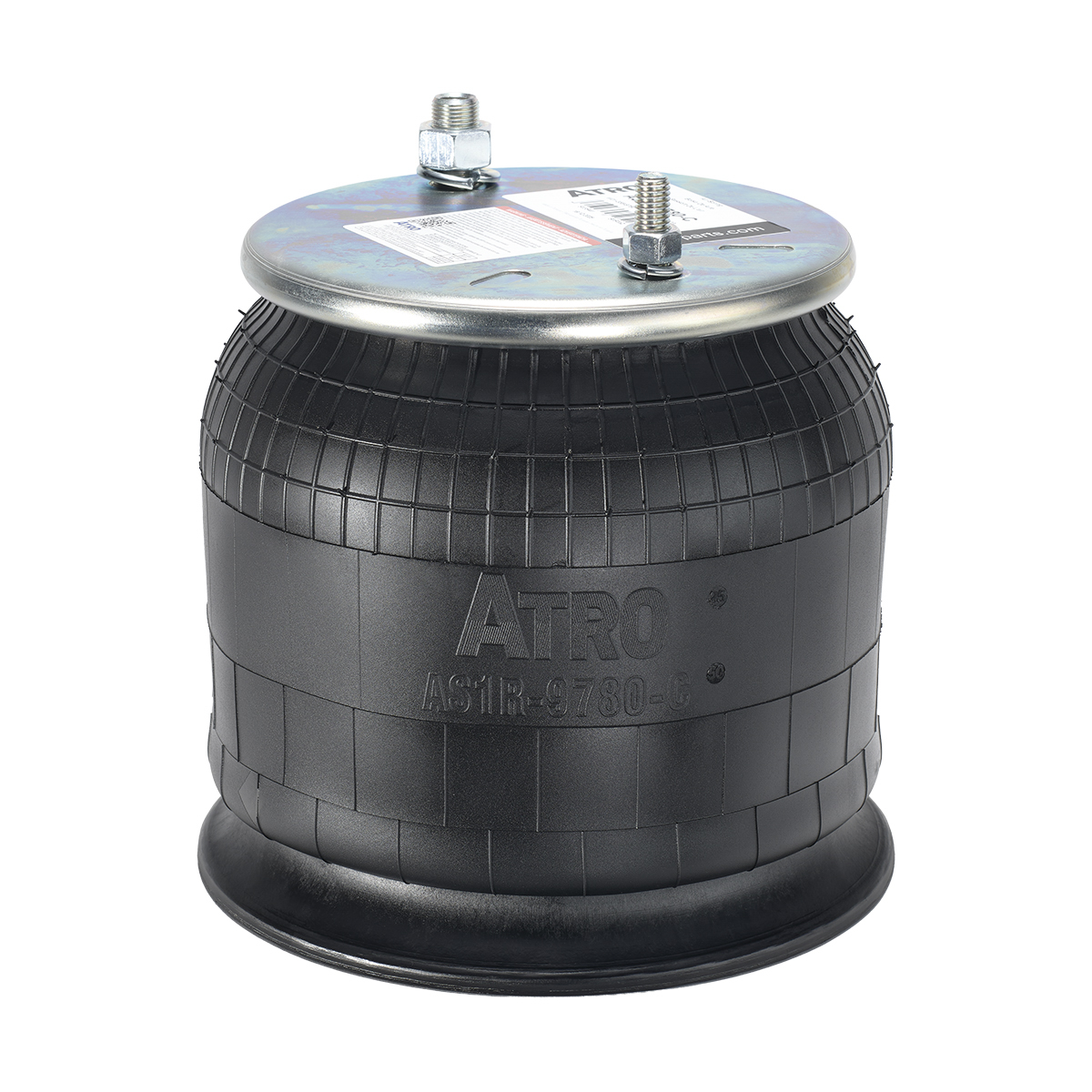

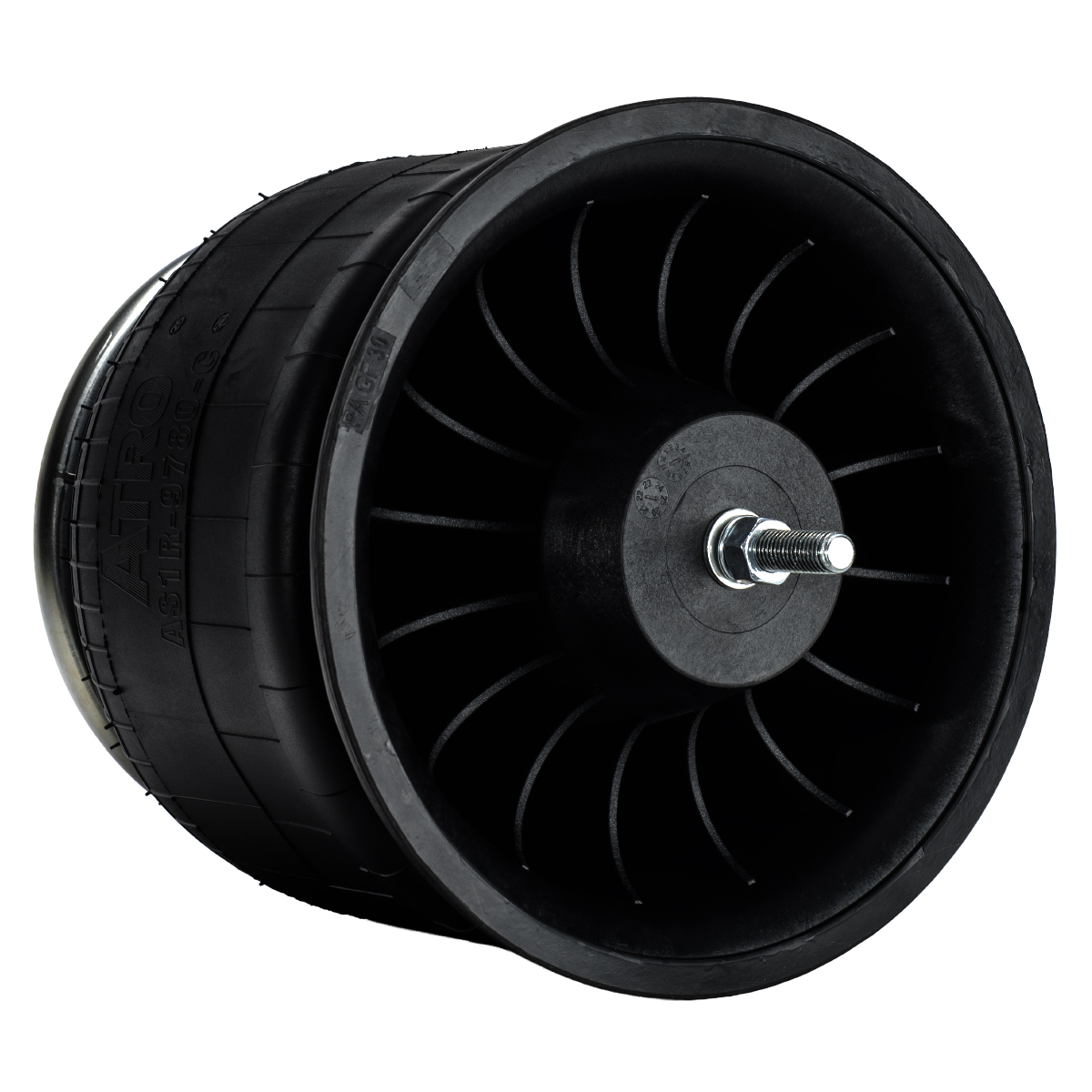

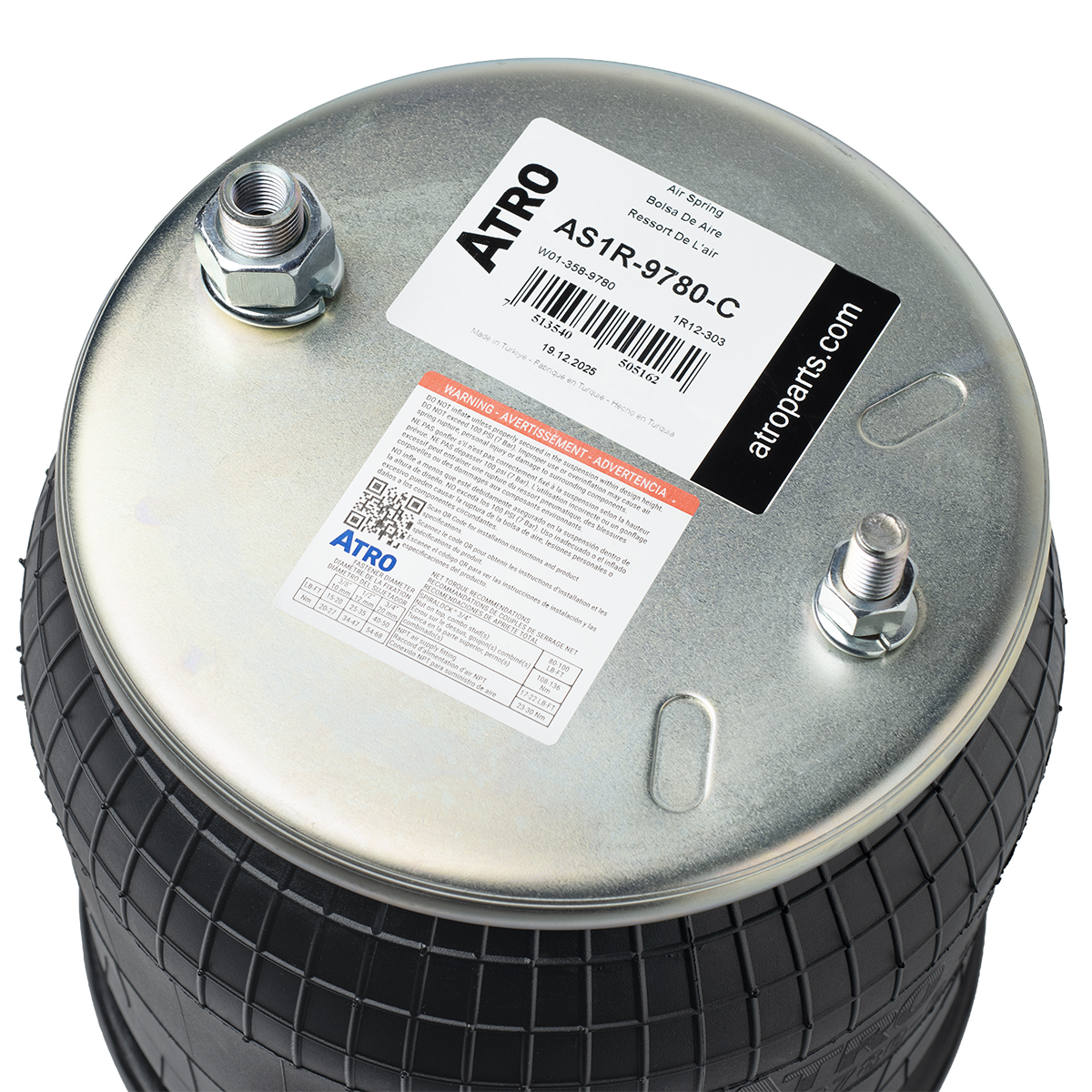

AS1R-9780-C - Air Spring, Rolling Lobe
AS1R-9780-C — Air Spring, Rolling Lobe
| Item | Description |
|---|---|
| ATRO # | AS1R-9780-C |
| Category | Suspension |
| Description | Air Spring, Rolling Lobe |
| Shipping Weight | 13 lbs |
| UPC Code | 751354050516 |
| Qty Per Vehicle | 2 |
| Documentation | |
| Warranty | U.S./Canada 3-Year; Export 1-Year |

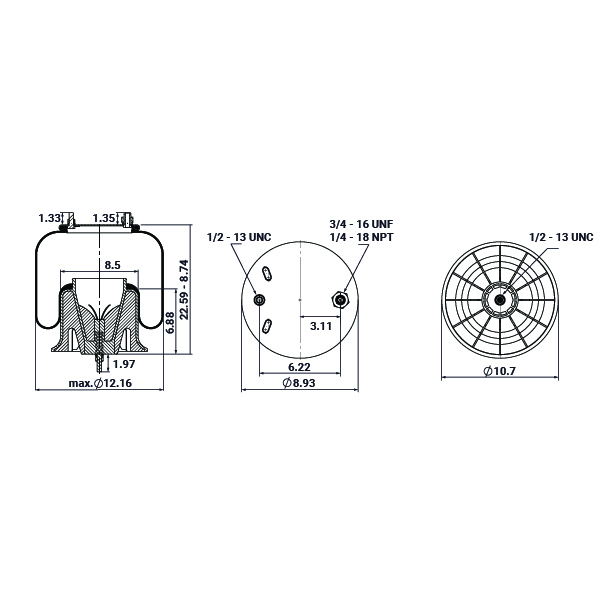

AS1R-9780-C Air Spring Technical Data
| Item | Description |
|---|---|
| Pallet Quantity | 24 |
| Type | Rolling Lobe |
| Piston Material | Composite |
| Bumper | No |
| Bracket | No |

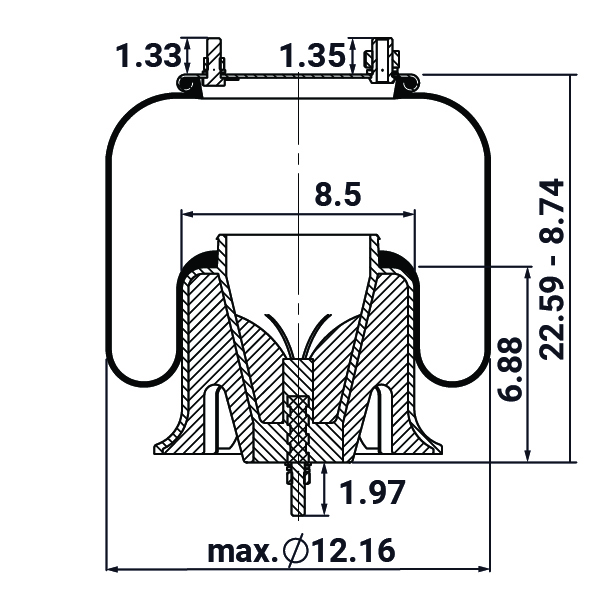

| Diameter Max (in) | 12.2 |
| Height Max (in) | 22.1 |
| Height Min (in) | 7.4 |

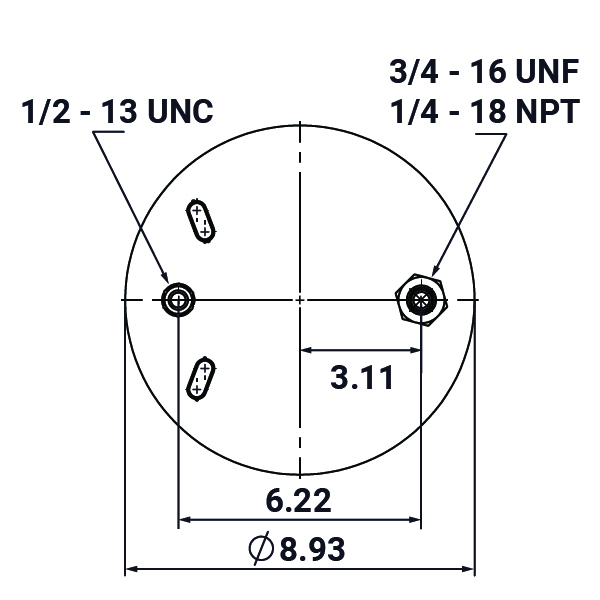

| Top Plate Ø (in) | 8.9 |
| Top Plate Hole/Stud Quantity | 2 |
| Top Plate C to C (in) | 6.2 |

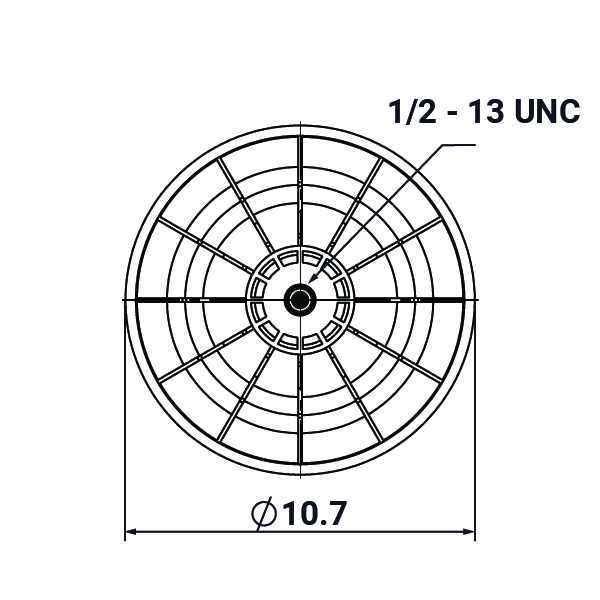

| Piston/Bottom Plate Ø (in) | 10.7 |
| Piston/Bottom Plate Alignment | Parallel |
| Piston/Bottom Plate Hole/Stud Quantity | 1 |
| Piston/Bottom Plate C to C (in) | N/A |
_01.jpg "AS1R-9780-C")
_02.jpg "AS1R-9780-C")
_03.jpg "AS1R-9780-C")
_04.jpg "AS1R-9780-C")
Parts Cross Reference
(click column headings to sort)
| OEM/Brand | Cross Reference | Application Notes |
|---|---|---|
| Automann | AB1DF23-9780 | |
| Brake & Wheel | M3550 | |
| Continental | 9 10S-16 P 382 | Composite |
| Continental | 67473 | Composite |
| Firestone | W01-358-9780 | Composite |
| Firestone | W01-377-8537 | |
| Fleetpride | AS9780 | |
| Freightliner | 16-13810-000 | |
| Freightliner | 16-13810-001 | |
| Freightliner | 16-13810-002 | |
| Freightliner | 16-13840-000 | |
| Freightliner | 16-14004-000 | |
| Freightliner | 16-14004-001 | |
| Freightliner | 16-14377-000 | |
| Freightliner | 16-15595-00 | |
| Freightliner | 16-15595-001 | |
| Freightliner | 16-15595-002 | |
| Freightliner | 16-16825-00 | |
| Freightliner | 16-19467-000 | |
| Freightliner | 16-19468-000 | |
| Freightliner | 681-320-0017 | |
| Freightliner | A16-13668-002 | |
| Freightliner | A16-14004-000 | |
| Goodyear | 1R12-303 | Composite |
| International | 1R12-1054 |
