AS1R-9644-C - Air Spring, Rolling Lobe
AS1R-9644-C — Air Spring, Rolling Lobe
| Item | Description |
|---|---|
| ATRO # | AS1R-9644-C |
| Category | Suspension |
| Description | Air Spring, Rolling Lobe |
| Shipping Weight | 14.1 lbs |
| UPC Code | 751354050813 |
| Qty Per Vehicle | 2 |
| Documentation | |
| Warranty | U.S./Canada 3-Year; Export 1-Year |
AS1R-9644-C Air Spring Technical Data
| Item | Description |
|---|---|
| Pallet Quantity | 28 |
| Type | Rolling Lobe |
| Piston Material | Composite |
| Bumper | Yes |
| Bracket | No |
| Diameter Max (in) | 12.2 |
| Height Max (in) | 20.8 |
| Height Min (in) | 7.8 |
| Top Plate Ø (in) | 8.9 |
| Top Plate Hole/Stud Quantity | 2 |
| Top Plate C to C (in) | 5.5 |
| Piston/Bottom Plate Ø (in) | 10.2 |
| Piston/Bottom Plate Alignment | Parallel |
| Piston/Bottom Plate Hole/Stud Quantity | 1 |
| Piston/Bottom Plate C to C (in) | N/A |

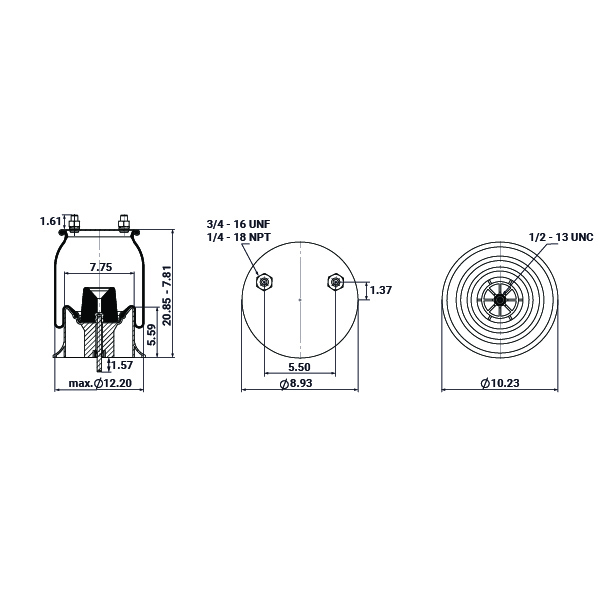

_01.jpg "AS1R-9644-C")

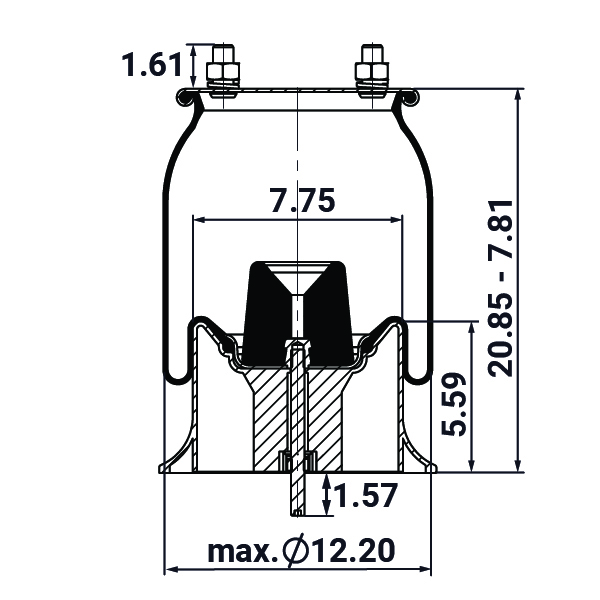

_02.jpg "AS1R-9644-C")

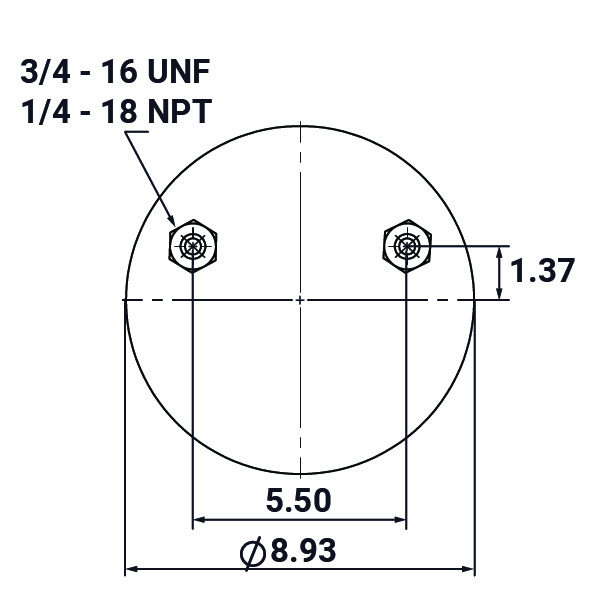

_03.jpg "AS1R-9644-C")

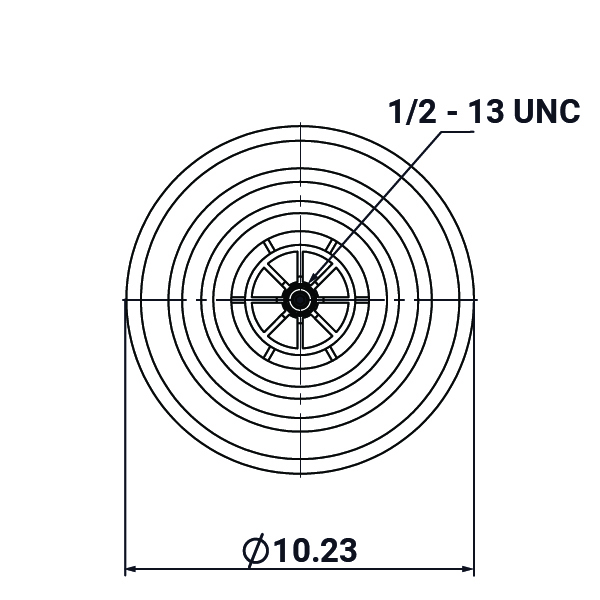

_04.jpg "AS1R-9644-C")
Parts Cross Reference
(click column headings to sort)
| OEM/Brand | Cross Reference | Application Notes |
|---|---|---|
| Automann | AB1DK23J-9644 | |
| Continental | 9 10BP-16 P 569 | Composite |
| Continental | 64693 | Composite |
| Firestone | W01-358-9644 | Composite |
| Fleetpride | AS9644 | |
| Goodyear | 1R12-1182 | Composite |
| Hendrickson | S23721 | |
| Sampa | SP 559644-KP | Composite |
| Triangle | AS-8569 | |
| TRP Parts | AS96440 |
