AS1R-9622-C - Air Spring, Rolling Lobe
AS1R-9622-C — Air Spring, Rolling Lobe
| Item | Description |
|---|---|
| ATRO # | AS1R-9622-C |
| Category | Suspension |
| Description | Air Spring, Rolling Lobe |
| Shipping Weight | 10.5 lbs |
| UPC Code | 751354050851 |
| Qty Per Vehicle | 2 |
| Documentation | |
| Warranty | U.S./Canada 3-Year; Export 1-Year |
AS1R-9622-C Air Spring Technical Data
| Item | Description |
|---|---|
| Pallet Quantity | 42 |
| Type | Rolling Lobe |
| Piston Material | Composite |
| Bumper | No |
| Bracket | Yes |
| Diameter Max (in) | 10.6 |
| Height Max (in) | 13.3 |
| Height Min (in) | 4.1 |
| Top Plate Ø (in) | 8.9 |
| Top Plate Hole/Stud Quantity | 1 |
| Top Plate C to C (in) | N/A |
| Piston/Bottom Plate Ø (in) | 8.4 |
| Piston/Bottom Plate Alignment | Parallel |
| Piston/Bottom Plate Hole/Stud Quantity | 1 |
| Piston/Bottom Plate C to C (in) | N/A |

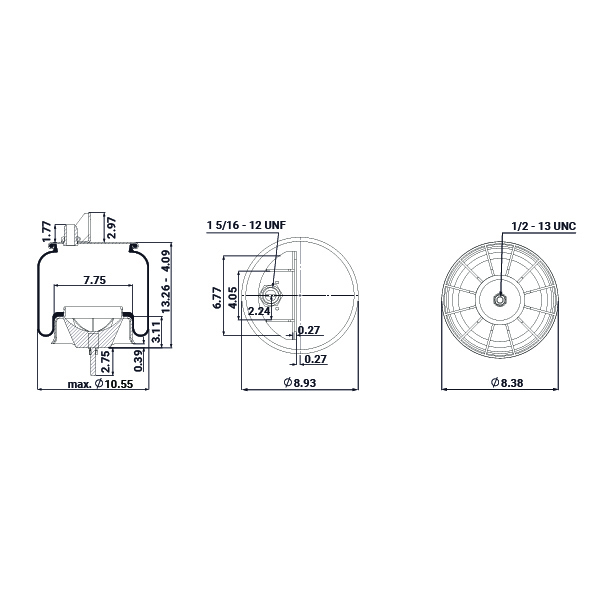

_01.jpg "AS1R-9622-C")

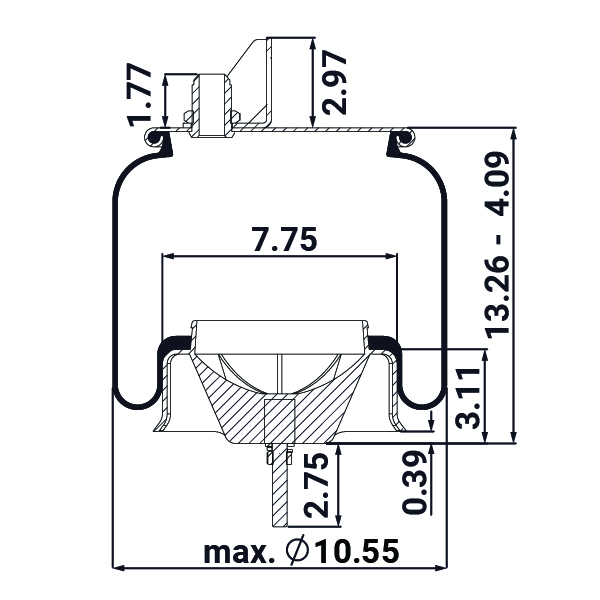

_02.jpg "AS1R-9622-C")

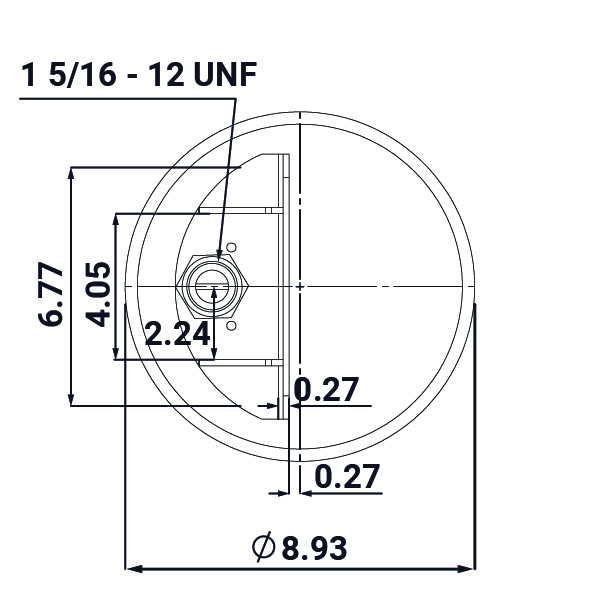

_03.jpg "AS1R-9622-C")

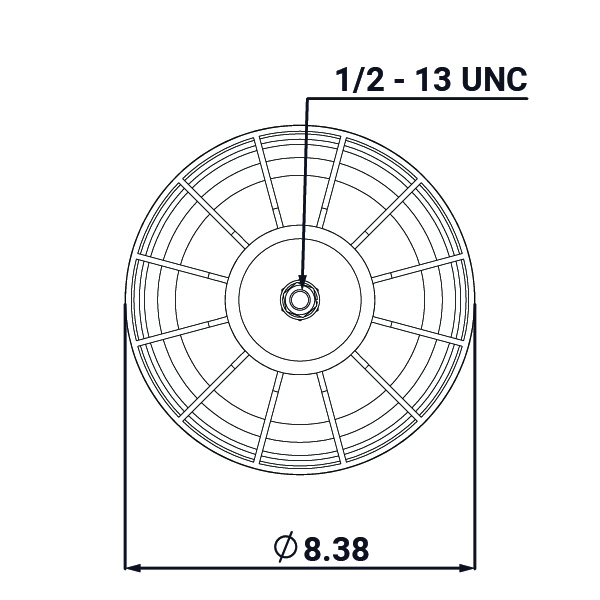

_04.jpg "AS1R-9622-C")

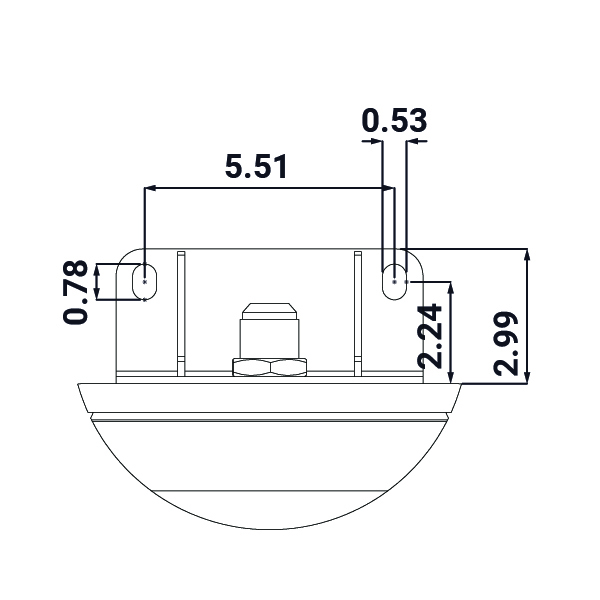

_05.jpg "AS1R-9622-C")
Parts Cross Reference
(click column headings to sort)
| OEM/Brand | Cross Reference | Application Notes |
|---|---|---|
| Automann | AB1DK20G-9622X | |
| Continental | 9 9-9 P 537 (BK) | Composite |
| Continental | 68359 | Composite |
| Firestone | W01-358-9622 | Composite |
| Fleetpride | AS9622 | |
| Goodyear | 1R11-221 | Steel |
| Kenworth | K-303-22 | Airglide 200: 1998 to 5/5/2003 (with interconnected airsprings) |
| Road Choice | AS9622 | |
| Sampa | SP 559622-K | Steel |
| Sampa | SP 559622-KP | Composite |
| Triangle | AS-8537 | |
| TRP Parts | AS96221 |
