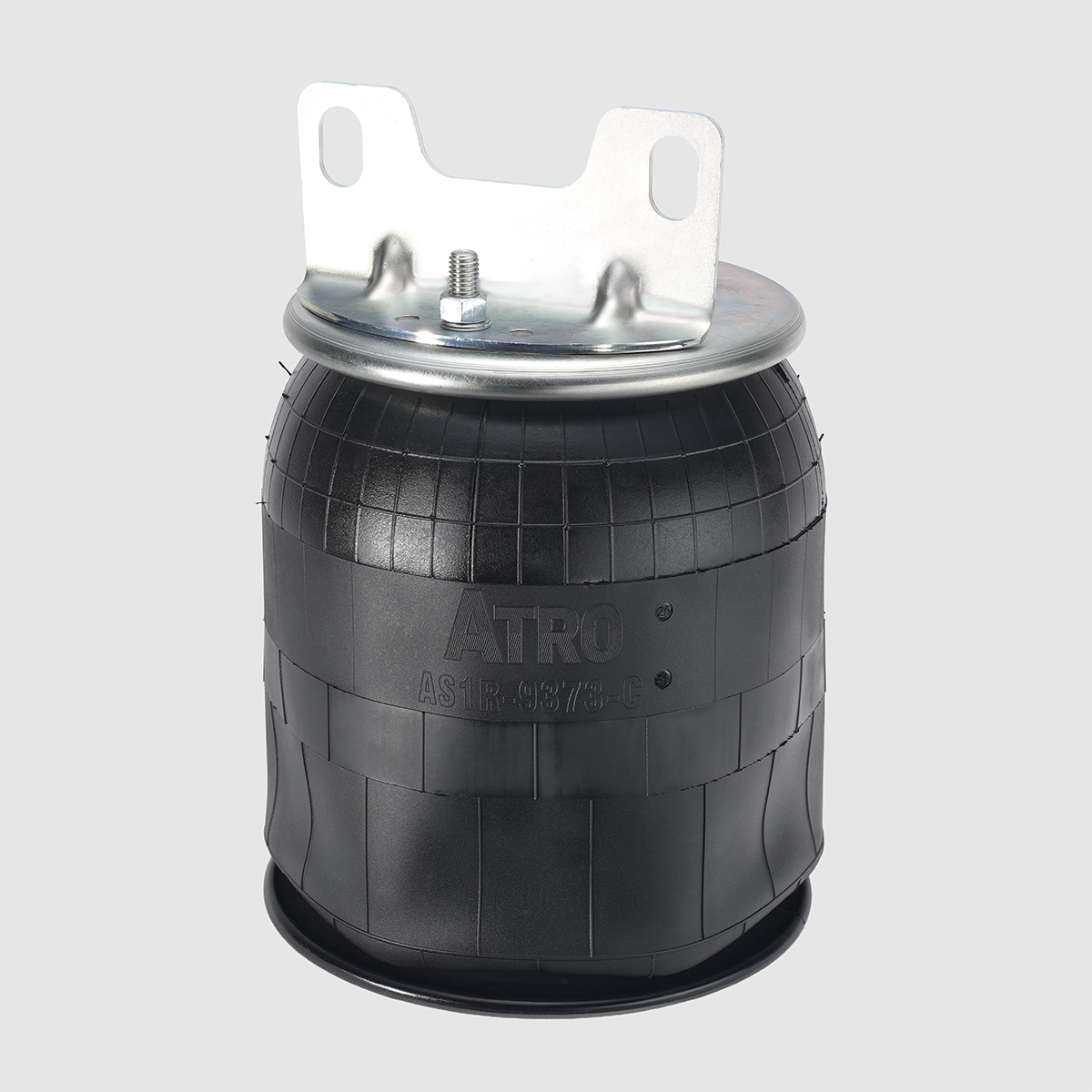

AS1R-9373-C - Air Spring, Rolling Lobe
AS1R-9373-C — Air Spring, Rolling Lobe
| Item | Description |
|---|---|
| ATRO # | AS1R-9373-C |
| Category | Suspension |
| Description | Air Spring, Rolling Lobe |
| Shipping Weight | 16.3 lbs |
| UPC Code | 751354050646 |
| Qty Per Vehicle | 2 |
| Documentation | |
| Warranty | U.S./Canada 3-Year; Export 1-Year |

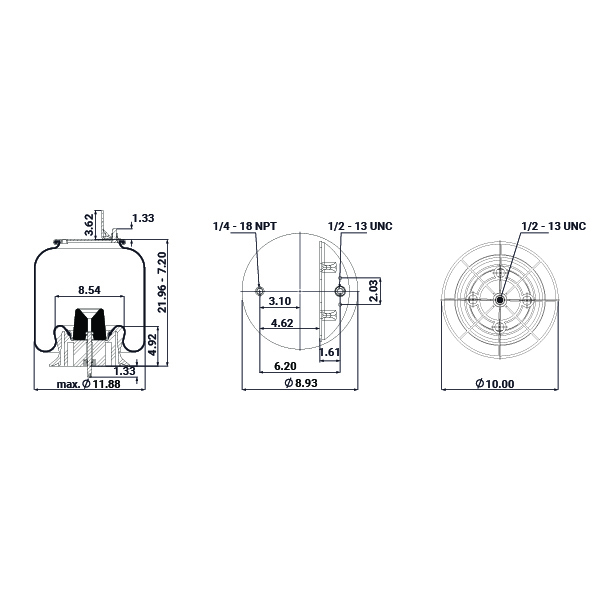

AS1R-9373-C Air Spring Technical Data
| Item | Description |
|---|---|
| Pallet Quantity | 28 |
| Type | Rolling Lobe |
| Piston Material | Composite |
| Bumper | Yes |
| Bracket | Yes |

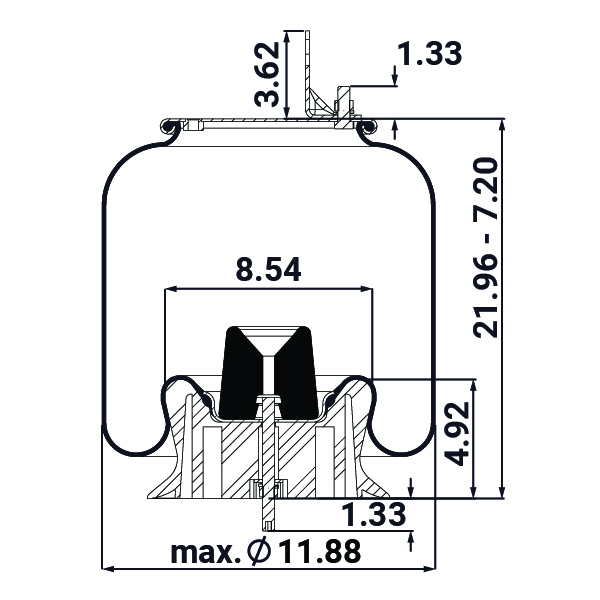

| Diameter Max (in) | 11.9 |
| Height Max (in) | 22 |
| Height Min (in) | 7.2 |

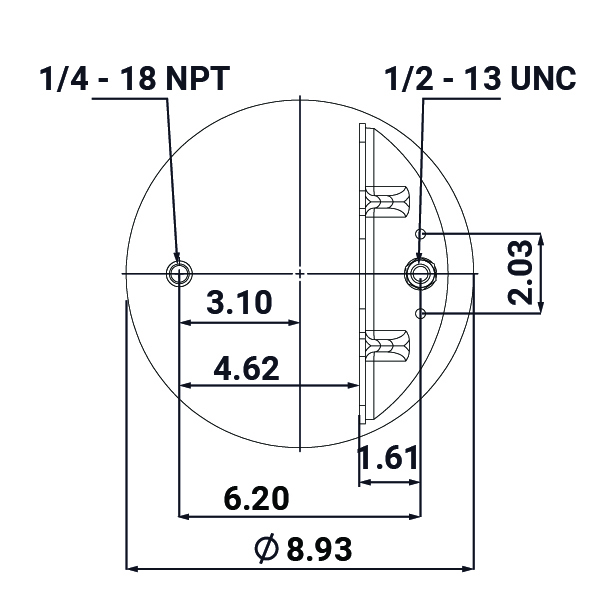

| Top Plate Ø (in) | 8.9 |
| Top Plate Hole/Stud Quantity | 2 |

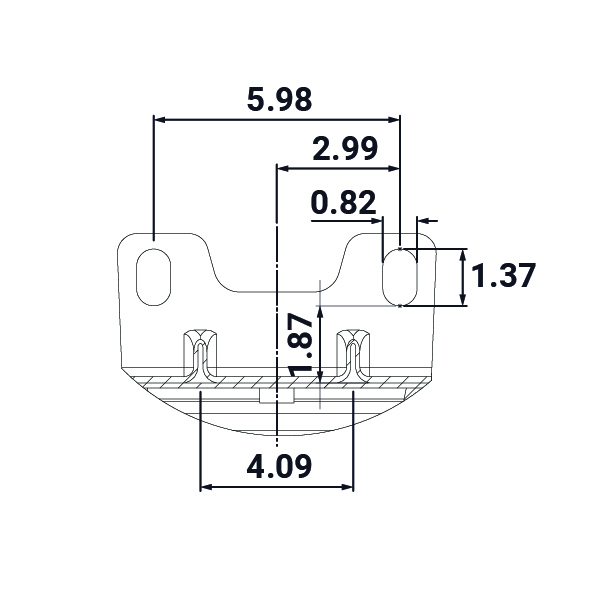

| Top Plate C to C (in) | 6.2 |

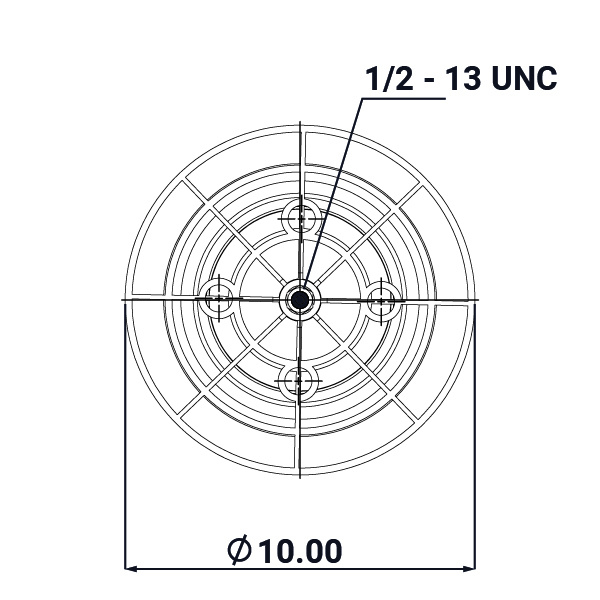

| Piston/Bottom Plate Ø (in) | 10 |
| Piston/Bottom Plate Alignment | Parallel |
| Piston/Bottom Plate Hole/Stud Quantity | 1 |
| Piston/Bottom Plate C to C (in) | N/A |
_01.jpg "AS1R-9373-C")
_02.jpg "AS1R-9373-C")
_03.jpg "AS1R-9373-C")
_04.jpg "AS1R-9373-C")
_05.jpg "AS1R-9373-C")
Parts Cross Reference
(click column headings to sort)
| OEM/Brand | Cross Reference | Application Notes |
|---|---|---|
| Automann | AB1DK23M-9373 | |
| Continental | 9 10-18.5 P 519 (BK) | Composite |
| Continental | 64265 | Composite |
| Firestone | W01-358-9373 | Composite |
| Goodyear | 1R12-403 | Composite |
| Hendrickson | 57122-1 | |
| Hendrickson | 57122-2 | Ford, Class 8 HAS-360/400/402/460 |
| International | 1R12-1056 | |
| MCI | 2992101C1 | |
| Road Choice | AS9373 | |
| Sampa | SP 559373-KP | Composite |
| Triangle | AS-8519 | |
| TRP Parts | AS93730 | |
| Watson Chalin | AS-0127-G | |
| Watson Chalin | AS-0141 |
