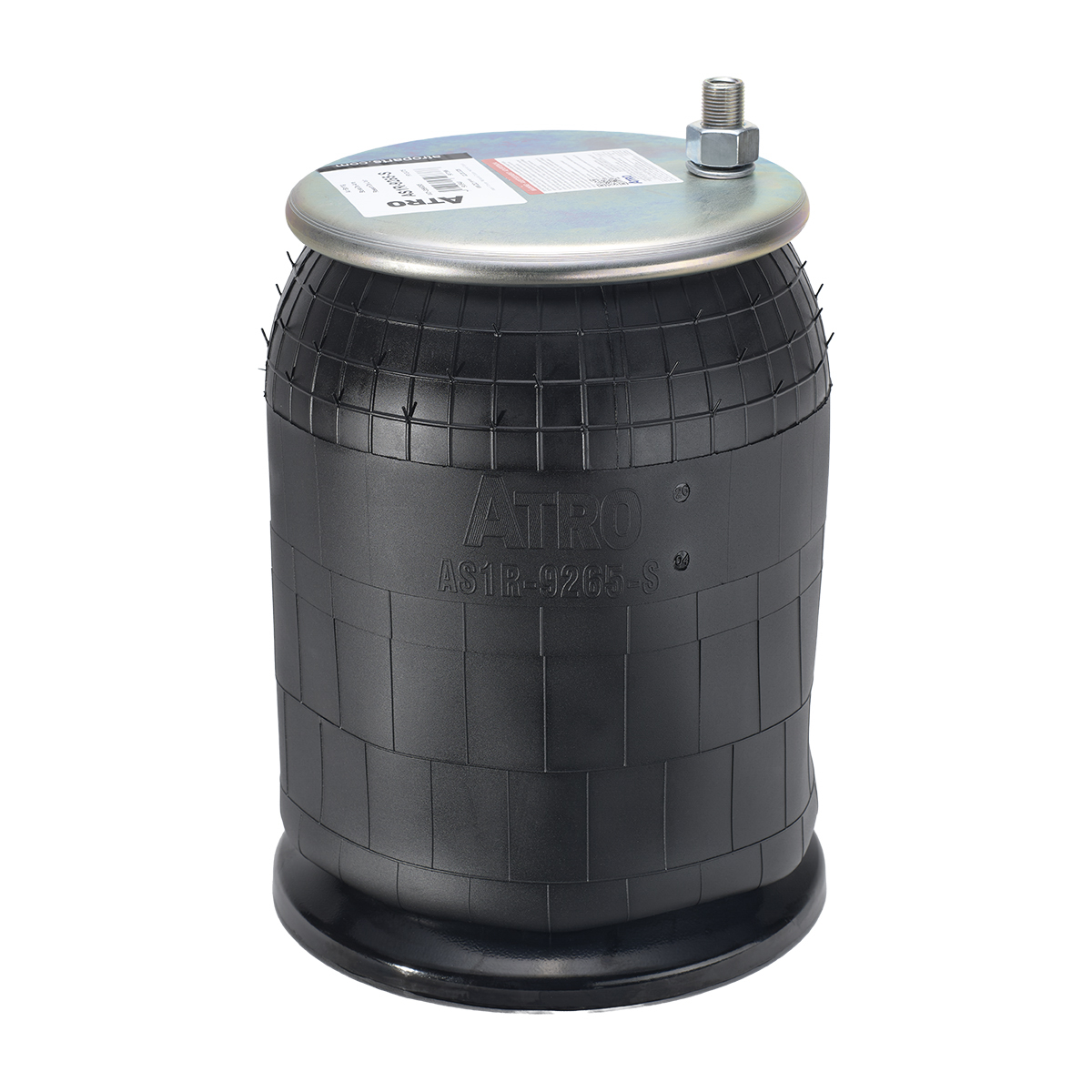

AS1R-9265-S - Air Spring, Rolling Lobe
AS1R-9265-S — Air Spring, Rolling Lobe
| Item | Description |
|---|---|
| ATRO # | AS1R-9265-S |
| Category | Suspension |
| Description | Air Spring, Rolling Lobe |
| Shipping Weight | 24.3 lbs |
| UPC Code | 751354050738 |
| Qty Per Vehicle | 2 |
| Documentation | |
| Warranty | U.S./Canada 3-Year; Export 1-Year |
AS1R-9265-S Air Spring Technical Data
| Item | Description |
|---|---|
| Pallet Quantity | 28 |
| Type | Rolling Lobe |
| Piston Material | Steel |
| Bumper | Yes |
| Bracket | No |
| Diameter Max (in) | 11.6 |
| Height Max (in) | 23.7 |
| Height Min (in) | 7.2 |
| Top Plate Ø (in) | 8.9 |
| Top Plate Hole/Stud Quantity | 1 |
| Top Plate C to C (in) | N/A |
| Piston/Bottom Plate Ø (in) | 10.8 |
| Piston/Bottom Plate Alignment | Parallel |
| Piston/Bottom Plate Hole/Stud Quantity | 4 |
| Piston/Bottom Plate C to C (in) | 4 |

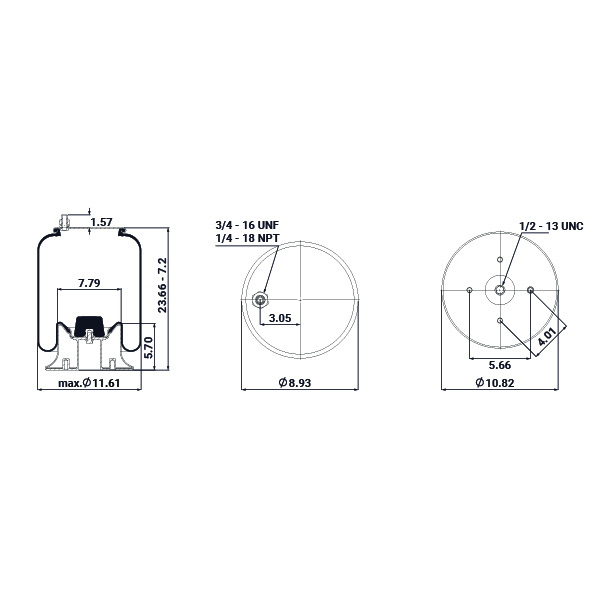

_01.jpg "AS1R-9265-S")

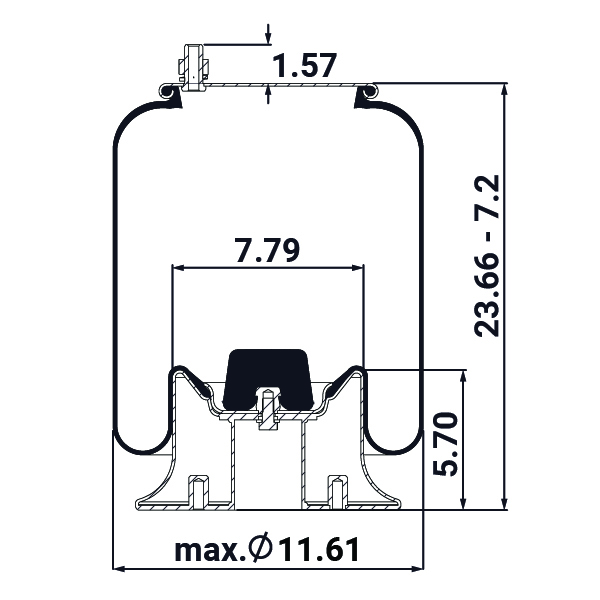

_02.jpg "AS1R-9265-S")

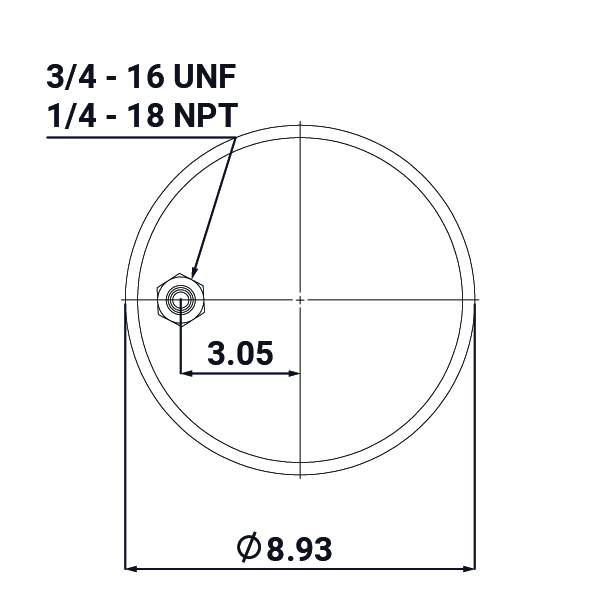

_03.jpg "AS1R-9265-S")

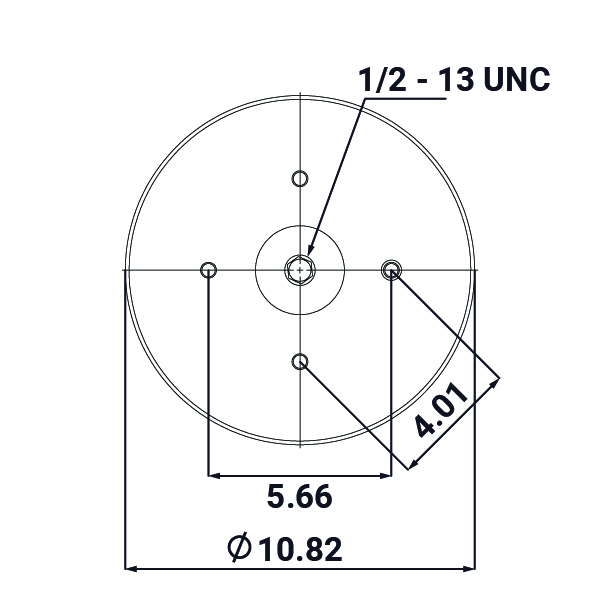

_04.jpg "AS1R-9265-S")
Parts Cross Reference
(click column headings to sort)
| OEM/Brand | Cross Reference | Application Notes |
|---|---|---|
| Automann | AB1DK23L-9265 | |
| Brake & Wheel | M3524 | |
| Continental | 9 10-19 P 435 | Near Cross Composite |
| Continental | 64288 | Near Cross Composite |
| Firestone | W01-358-9265 | Near Cross Aluminum |
| Fleetpride | AS9265 | |
| Goodyear | 1R12-375 | Steel |
| Hendrickson | C-20413 | Rotate piston to 45º alignment |
| Hendrickson | HT-250T | |
| Hendrickson | HT-250U | |
| Hendrickson | HT-250U-Y | 9Y-001 |
| Hendrickson | S-20413 | |
| Hendrickson | S20124 | |
| International | FLTA1R12375 | |
| Load Guard | SC2759 | |
| Road Choice | AS9265 | |
| Sampa | SP 559265-K | Steel |
| Sampa | SP 559265-KA | Aluminum |
| Triangle | AS-8435 | |
| TRP Parts | AS92650 | |
| Volvo | 85101155 |
