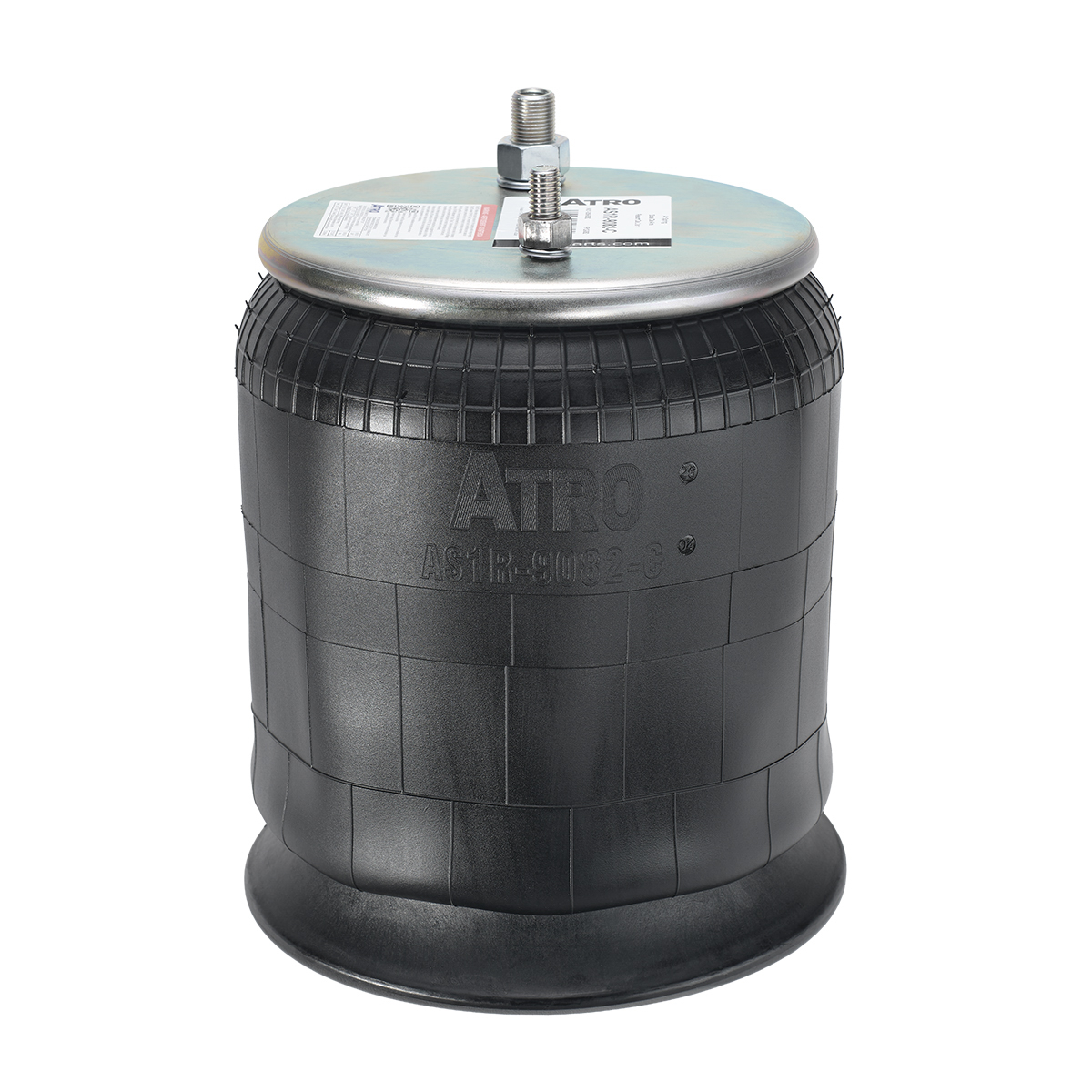

AS1R-9082-C - Air Spring, Rolling Lobe
AS1R-9082-C — Air Spring, Rolling Lobe
| Item | Description |
|---|---|
| ATRO # | AS1R-9082-C |
| Category | Suspension |
| Description | Air Spring, Rolling Lobe |
| Shipping Weight | 13.7 lbs |
| UPC Code | 751354050769 |
| Qty Per Vehicle | 2 |
| Documentation | |
| Warranty | U.S./Canada 3-Year; Export 1-Year |

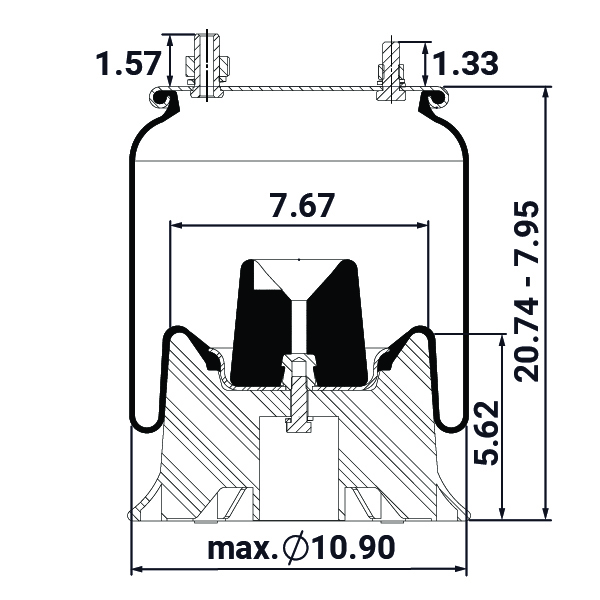

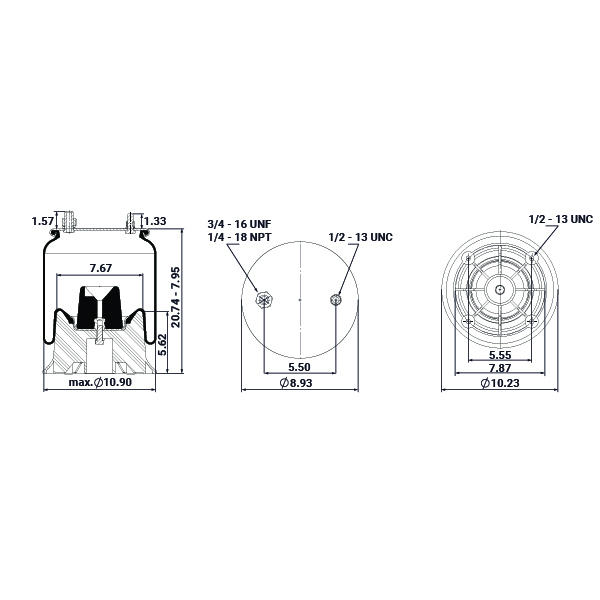

AS1R-9082-C Air Spring Technical Data
| Item | Description |
|---|---|
| Pallet Quantity | 28 |
| Type | Rolling Lobe |
| Piston Material | Composite |
| Bumper | Yes |
| Bracket | No |
| Diameter Max (in) | 10.9 |
| Height Max (in) | 20.7 |
| Height Min (in) | 8 |

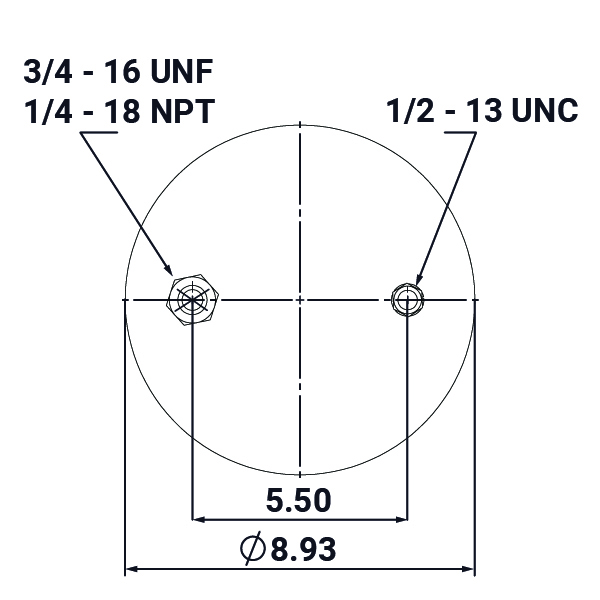

| Top Plate Ø (in) | 8.9 |
| Top Plate Hole/Stud Quantity | 2 |
| Top Plate C to C (in) | 5.5 |

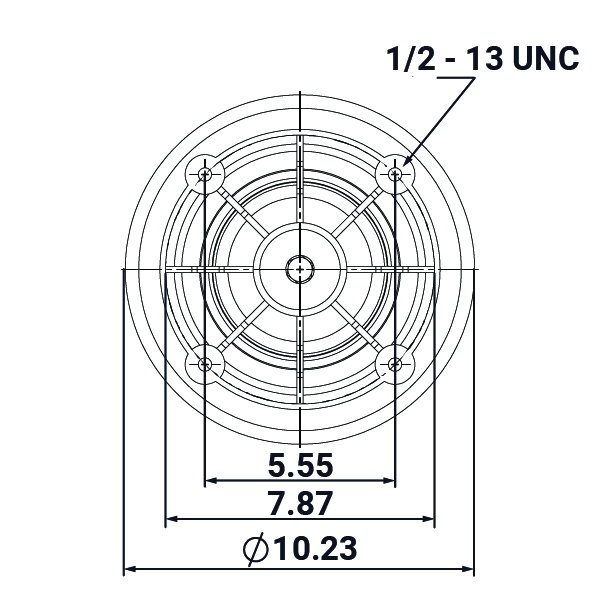

| Piston/Bottom Plate Ø (in) | 10.2 |
| Piston/Bottom Plate Alignment | 45° |
| Piston/Bottom Plate Hole/Stud Quantity | 4 |
| Piston/Bottom Plate C to C (in) | 5.6 |
_01.jpg "AS1R-9082-C")
_02.jpg "AS1R-9082-C")
_03.jpg "AS1R-9082-C")
_04.jpg "AS1R-9082-C")
Parts Cross Reference
(click column headings to sort)
| OEM/Brand | Cross Reference | Application Notes |
|---|---|---|
| Automann | AB1DK23K-9082 | |
| Continental | 9 10-16 P 310 | Composite |
| Continental | 64269 | Composite |
| Dayton | 1090217 | |
| Dayton | 352-9082 | |
| Eveley | RA 1954-5 | |
| Fab Tek | 101929 | |
| Firestone | W01-358-9082 | Composite |
| Fleetpride | AS9082 | |
| Goodyear | 1R12-092 | Composite |
| Hendrickson | B-12514-007 | |
| Hendrickson | S-11651 | |
| Hendrickson | S-13159 | |
| Hendrickson | S-2066 | |
| Hendrickson | S-4041 | |
| Hendrickson | S11651 | |
| Hendrickson | S2066 | |
| International | 517559C9 | |
| Load Guard | SC2035 | |
| Load Guard | SC2762 | |
| Reyco | 12882-01 | |
| Ridewell | 1003589082C | |
| Road Choice | AS9082 | |
| SAF Holland | 90557006 | |
| SAF Holland | 90557027 |
