AS1R-8852-C - Air Spring, Rolling Lobe
AS1R-8852-C — Air Spring, Rolling Lobe
| Item | Description |
|---|---|
| ATRO # | AS1R-8852-C |
| Category | Suspension |
| Description | Air Spring, Rolling Lobe |
| Shipping Weight | 12.6 lbs |
| UPC Code | 751354050745 |
| Qty Per Vehicle | 2 |
| Documentation | |
| Warranty | U.S./Canada 3-Year; Export 1-Year |
AS1R-8852-C Air Spring Technical Data
| Item | Description |
|---|---|
| Pallet Quantity | 28 |
| Type | Rolling Lobe |
| Piston Material | Composite |
| Bumper | No |
| Bracket | No |

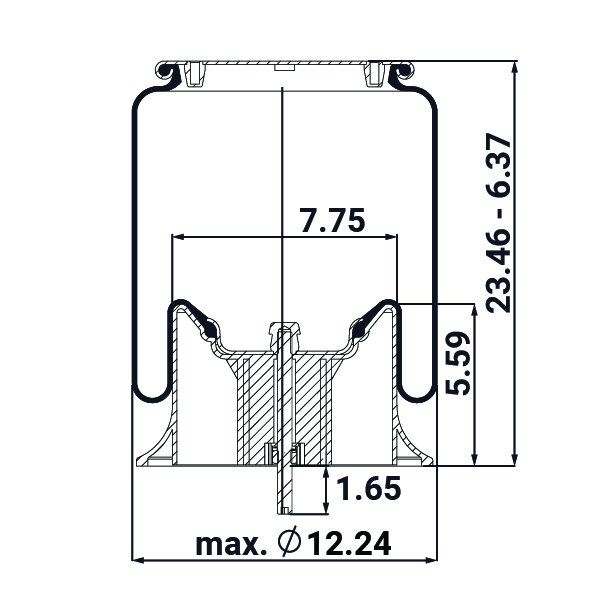

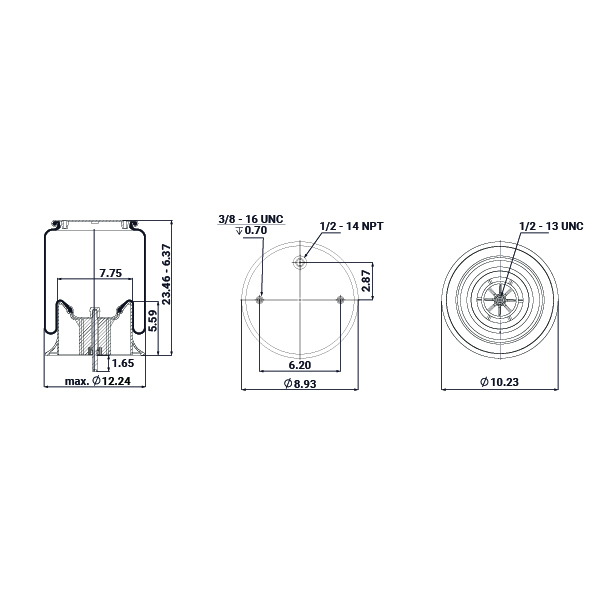

| Diameter Max (in) | 12.2 |
| Height Max (in) | 23.5 |
| Height Min (in) | 6.4 |

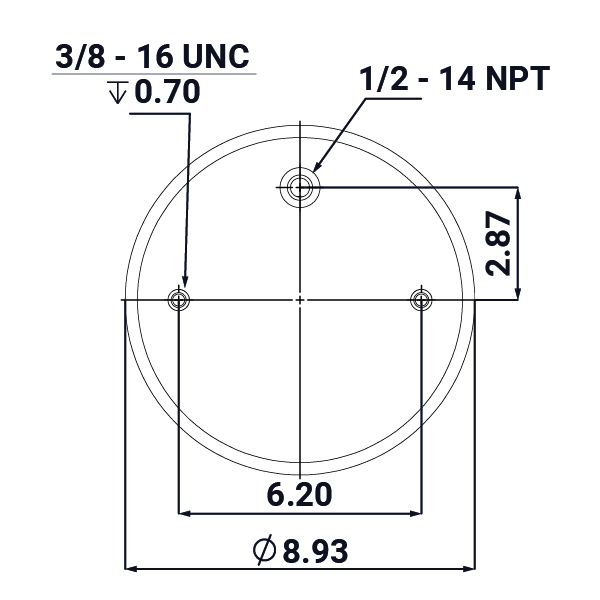

| Top Plate Ø (in) | 8.9 |
| Top Plate Hole/Stud Quantity | 3 |
| Top Plate C to C (in) | 6.2 |

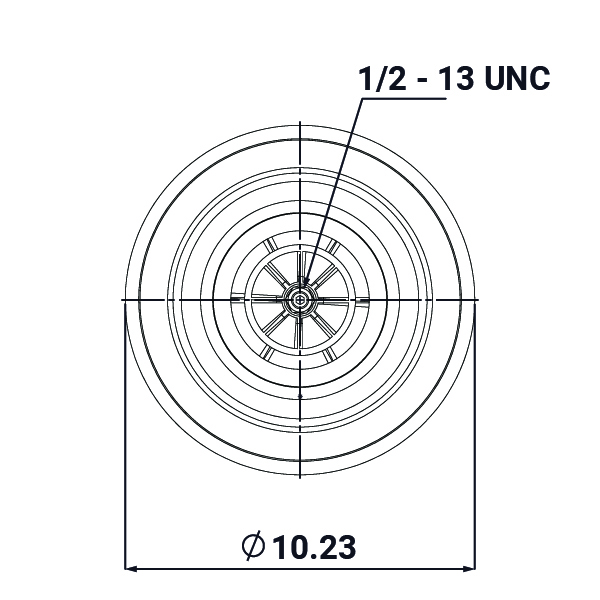

| Piston/Bottom Plate Ø (in) | 10.2 |
| Piston/Bottom Plate Alignment | Parallel |
| Piston/Bottom Plate Hole/Stud Quantity | 1 |
| Piston/Bottom Plate C to C (in) | N/A |
_01.jpg "AS1R-8852-C")
_02.jpg "AS1R-8852-C")
_03.jpg "AS1R-8852-C")
_04.jpg "AS1R-8852-C")
Parts Cross Reference
(click column headings to sort)
| OEM/Brand | Cross Reference | Application Notes |
|---|---|---|
| Automann | AB1DK23L-8852 | |
| Continental | 9 10-19 P 472 | Composite |
| Continental | 64339 | Composite |
| Firestone | W01-358-8852 | Composite |
| Fleetpride | AS8852 | |
| Goodyear | 1R12-568 | Composite |
| International | 1R12-1058 | |
| Peterbilt | 03-07887 | Low Air Leaf |
| Road Choice | AS8852 | |
| Sampa | SP 558852-KP | Composite |
| Triangle | AS-8472 | |
| TRP Parts | AS88520 |
