AS1R-8774-C - Air Spring, Rolling Lobe
AS1R-8774-C — Air Spring, Rolling Lobe
| Item | Description |
|---|---|
| ATRO # | AS1R-8774-C |
| Category | Suspension |
| Description | Air Spring, Rolling Lobe |
| Shipping Weight | 17.6 lbs |
| UPC Code | 751354050844 |
| Qty Per Vehicle | 2 |
| Documentation | |
| Warranty | U.S./Canada 3-Year; Export 1-Year |
AS1R-8774-C Air Spring Technical Data
| Item | Description |
|---|---|
| Pallet Quantity | 33 |
| Type | Rolling Lobe |
| Piston Material | Composite |
| Bumper | Yes |
| Bracket | No |
| Diameter Max (in) | 13.9 |
| Height Max (in) | 20.8 |
| Height Min (in) | 6.1 |
| Top Plate Ø (in) | 11.3 |
| Top Plate Hole/Stud Quantity | 2 |
| Top Plate C to C (in) | 5.5 |
| Piston/Bottom Plate Ø (in) | 10.2 |
| Piston/Bottom Plate Alignment | Parallel |
| Piston/Bottom Plate Hole/Stud Quantity | 1 |
| Piston/Bottom Plate C to C (in) | N/A |

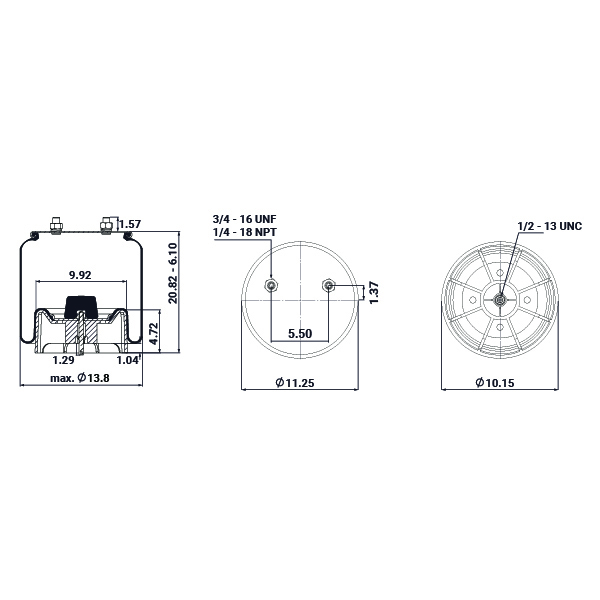

_01.jpg "AS1R-8774-C")

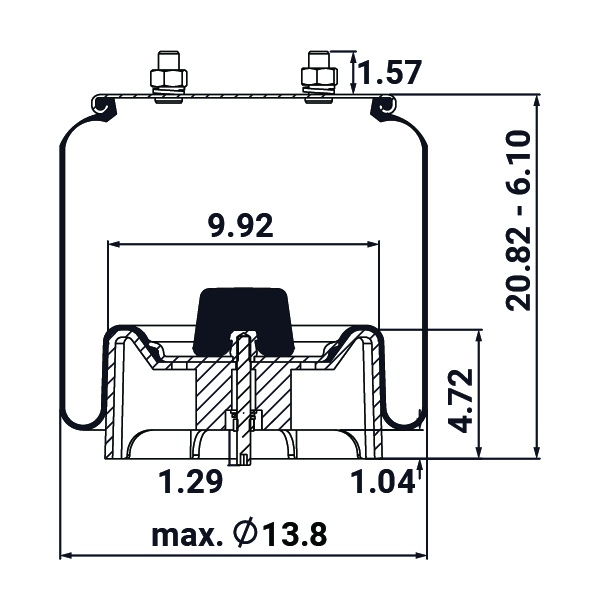

_02.jpg "AS1R-8774-C")

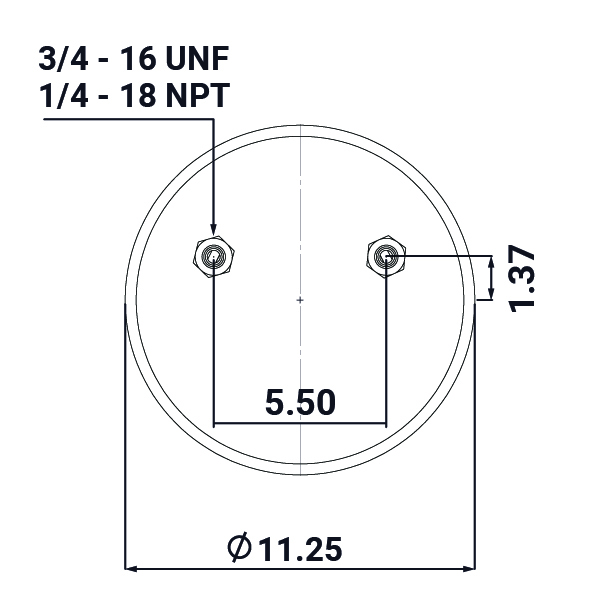

_03.jpg "AS1R-8774-C")

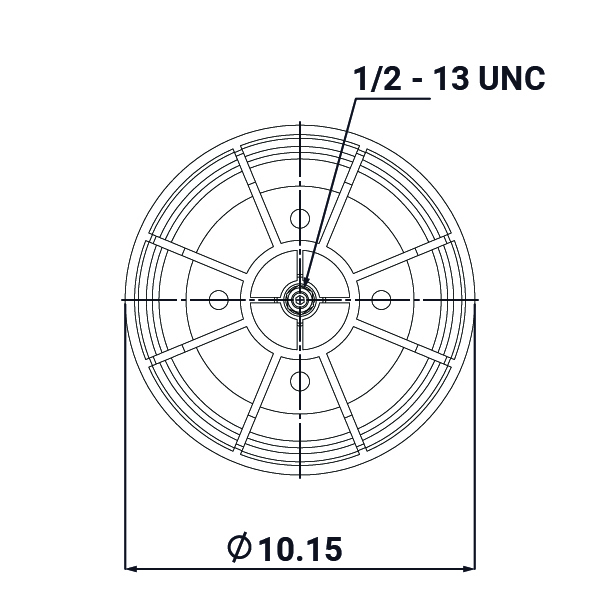

_04.jpg "AS1R-8774-C")
Parts Cross Reference
(click column headings to sort)
| OEM/Brand | Cross Reference | Application Notes |
|---|---|---|
| Automann | AB1DK28M-8774 | |
| Continental | 11 10.5F-17 P 745 | Composite |
| Continental | 65593 | Composite |
| Firestone | W01-358-8774 | Composite |
| Fleetpride | AS8774 | |
| Goodyear | 1R14-172 | Composite |
| Hendrickson | C-25873 | |
| Hendrickson | S25873 | INTRAAX AAT 30K. Reuse steel air spring disc |
| Hendrickson | S27341 | INTRAAX AAT 30K. Reuse steel air spring disc |
| Sampa | SP 558774-KP | Composite |
| Triangle | AS-8745 | |
| TRP Parts | AS87740 | |
| Watson Chalin | AS-0159 | |
| Watson Chalin | AS-0159-1G |
