AS1R-8729-C - Air Spring, Rolling Lobe
AS1R-8729-C — Air Spring, Rolling Lobe
| Item | Description |
|---|---|
| ATRO # | AS1R-8729-C |
| Category | Suspension |
| Description | Air Spring, Rolling Lobe |
| Shipping Weight | 12.7 lbs |
| UPC Code | 751354050677 |
| Qty Per Vehicle | 2 |
| Documentation | |
| Warranty | U.S./Canada 3-Year; Export 1-Year |
AS1R-8729-C Air Spring Technical Data
| Item | Description |
|---|---|
| Pallet Quantity | 24 |
| Type | Rolling Lobe |
| Piston Material | Composite |
| Bumper | Yes |
| Bracket | No |
| Diameter Max (in) | 12.5 |
| Height Max (in) | 14.1 |
| Height Min (in) | 4.9 |
| Top Plate Ø (in) | 8.9 |
| Top Plate Hole/Stud Quantity | 2 |
| Top Plate C to C (in) | 5.5 |
| Piston/Bottom Plate Ø (in) | 10.1 |
| Piston/Bottom Plate Alignment | Parallel |
| Piston/Bottom Plate Hole/Stud Quantity | 1 |
| Piston/Bottom Plate C to C (in) | N/A |

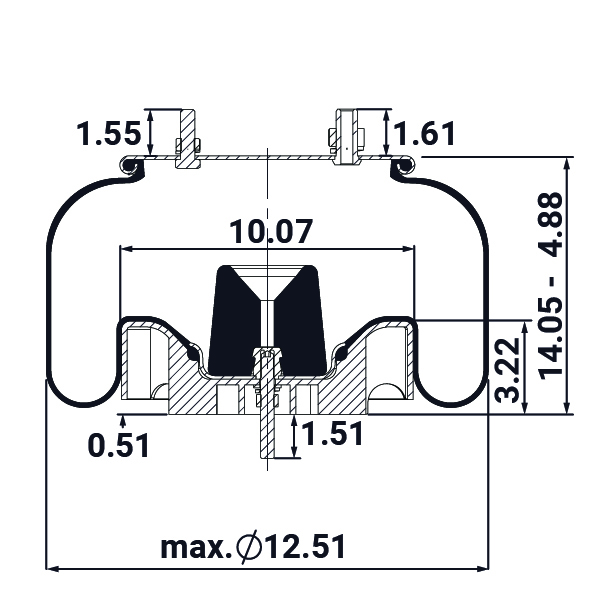

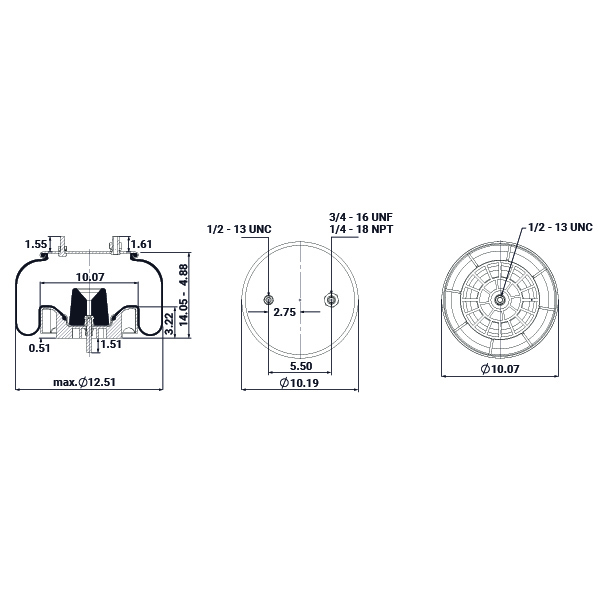

_01.jpg "AS1R-8729-C")
_02.jpg "AS1R-8729-C")

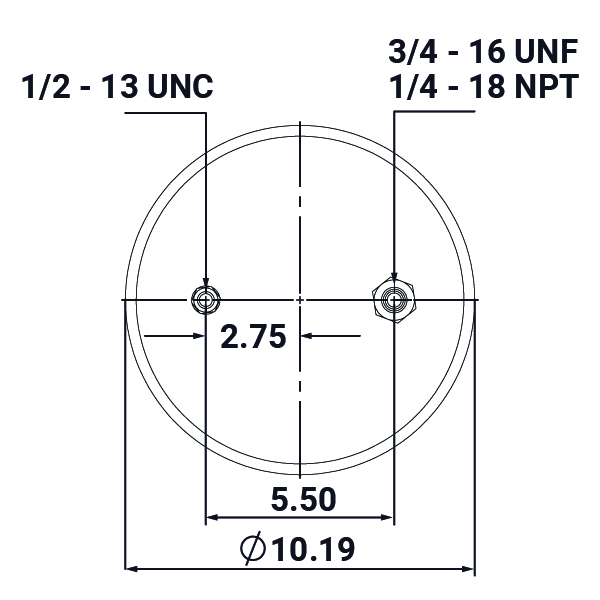

_03.jpg "AS1R-8729-C")

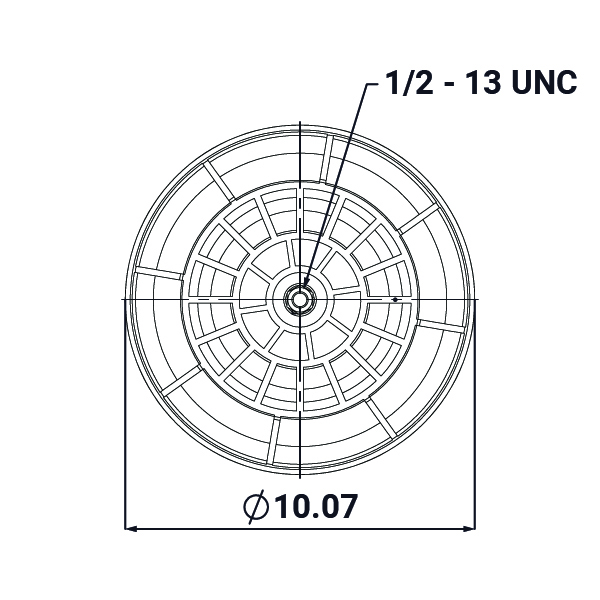

_04.jpg "AS1R-8729-C")
Parts Cross Reference
(click column headings to sort)
| OEM/Brand | Cross Reference | Application Notes |
|---|---|---|
| Automann | AB1DK25D-8729 | |
| Continental | 77963 | Composite |
| Continental | 10 10A-12 P 1330 | Composite |
| Firestone | W01-358-8729 | Composite |
| Goodyear | 1R13-130 | Composite |
| Meritor | 202796 | |
| Meritor | 202796 | |
| Meritor | A2258F1410 | |
| Meritor | MAF8729 | |
| Road Choice | AS8729 | |
| Sampa | SP 558729-KP | Composite |
| TRP Parts | AS87290 |
