AS1R-8708-C - Air Spring, Rolling Lobe
AS1R-8708-C — Air Spring, Rolling Lobe
| Item | Description |
|---|---|
| ATRO # | AS1R-8708-C |
| Category | Suspension |
| Description | Air Spring, Rolling Lobe |
| Shipping Weight | 14.6 lbs |
| UPC Code | 751354050684 |
| Qty Per Vehicle | 2 |
| Documentation | |
| Warranty | U.S./Canada 3-Year; Export 1-Year |

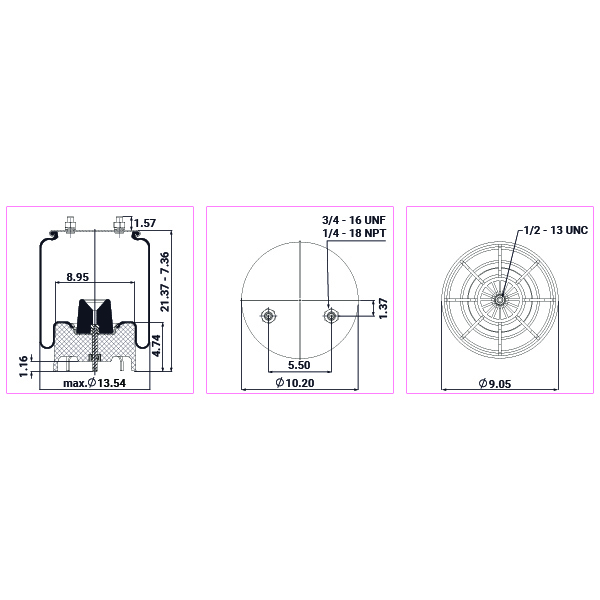

AS1R-8708-C Air Spring Technical Data
| Item | Description |
|---|---|
| Pallet Quantity | 36 |
| Type | Rolling Lobe |
| Piston Material | Composite |
| Bumper | Yes |
| Bracket | No |

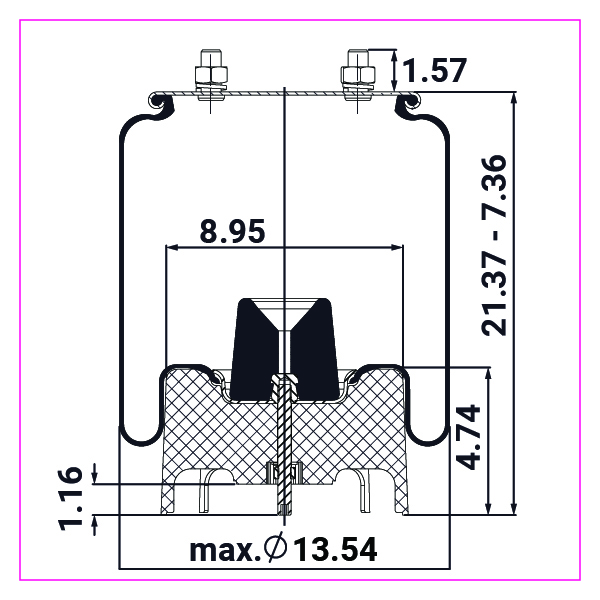

| Diameter Max (in) | 13.5 |
| Height Max (in) | 21.4 |
| Height Min (in) | 7.4 |

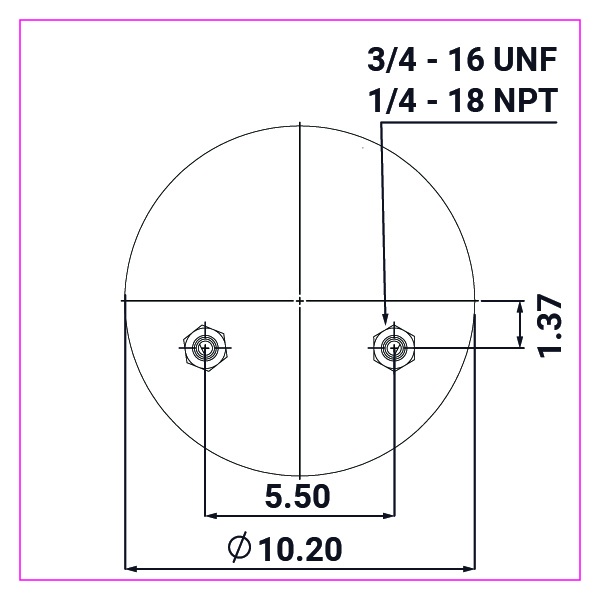

| Top Plate Ø (in) | 10.2 |
| Top Plate Hole/Stud Quantity | 2 |
| Top Plate C to C (in) | 5.5 |

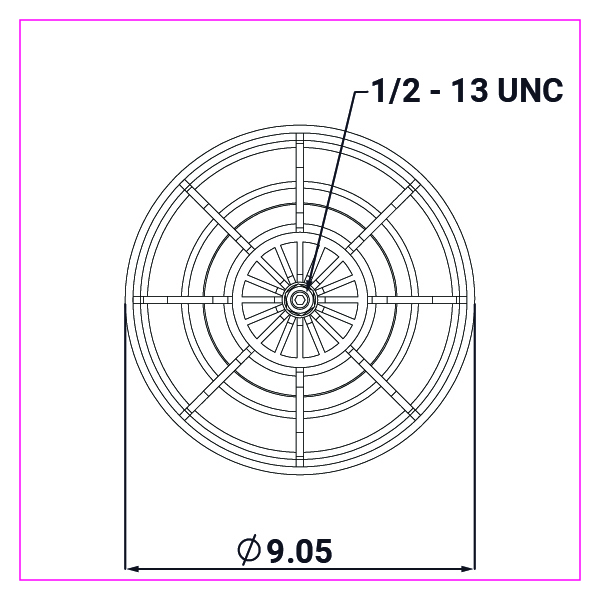

| Piston/Bottom Plate Ø (in) | 9.1 |
| Piston/Bottom Plate Alignment | Parallel |
| Piston/Bottom Plate Hole/Stud Quantity | 1 |
| Piston/Bottom Plate C to C (in) | N/A |
_01.jpg "AS1R-8708-C")
_02.jpg "AS1R-8708-C")
_03.jpg "AS1R-8708-C")
_04.jpg "AS1R-8708-C")
Parts Cross Reference
(click column headings to sort)
| OEM/Brand | Cross Reference | Application Notes |
|---|---|---|
| Automann | AB1DK25E-8708 | |
| Continental | 10 10-16 P 526 | Composite |
| Continental | 64638 | Composite |
| Firestone | W01-358-8708 | Composite |
| Fleetpride | AS8708 | |
| Goodyear | 1R13-177 | Composite |
| Hendrickson | S21966 | HKA200 |
| International | 1R13-250 | |
| Road Choice | AS8708 | |
| Sampa | SP 558708-KP | Composite |
| Triangle | AS-8526 | |
| TRP Parts | AS87080 |
