AS1R-8468-C - Air Spring, Rolling Lobe
AS1R-8468-C — Air Spring, Rolling Lobe
| Item | Description |
|---|---|
| ATRO # | AS1R-8468-C |
| Category | Suspension |
| Description | Air Spring, Rolling Lobe |
| Shipping Weight | 11 lbs |
| UPC Code | 751354050691 |
| Qty Per Vehicle | 2 |
| Documentation | |
| Warranty | U.S./Canada 3-Year; Export 1-Year |

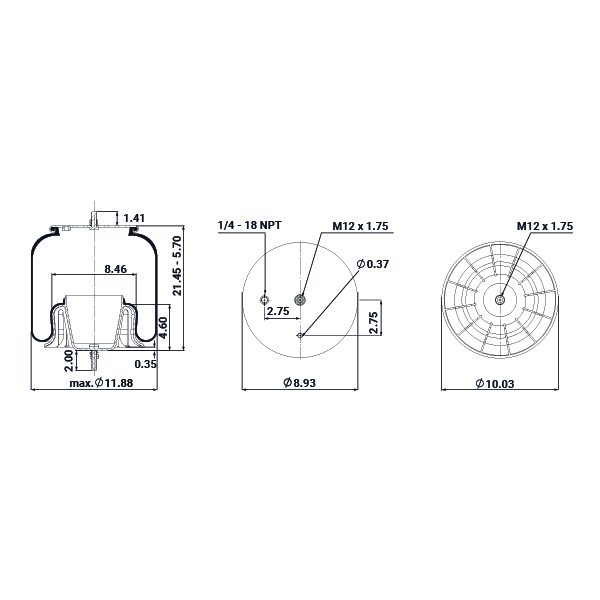

AS1R-8468-C Air Spring Technical Data
| Item | Description |
|---|---|
| Pallet Quantity | 24 |
| Type | Rolling Lobe |
| Piston Material | Composite |
| Bumper | No |
| Bracket | No |

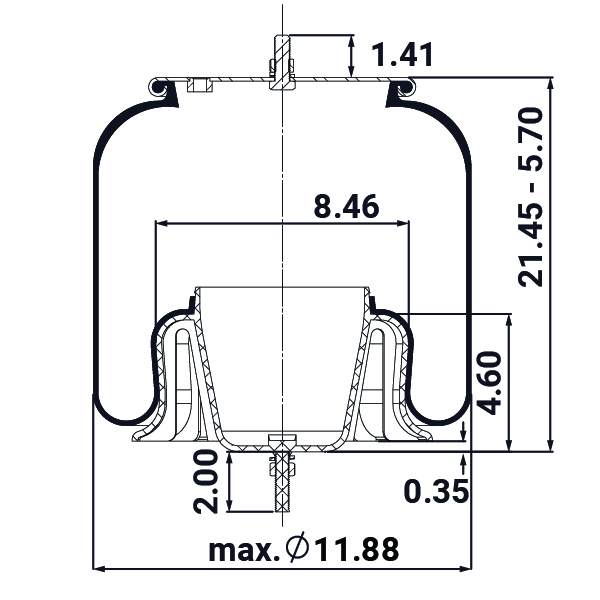

| Diameter Max (in) | 11.9 |
| Height Max (in) | 21.5 |
| Height Min (in) | 5.7 |

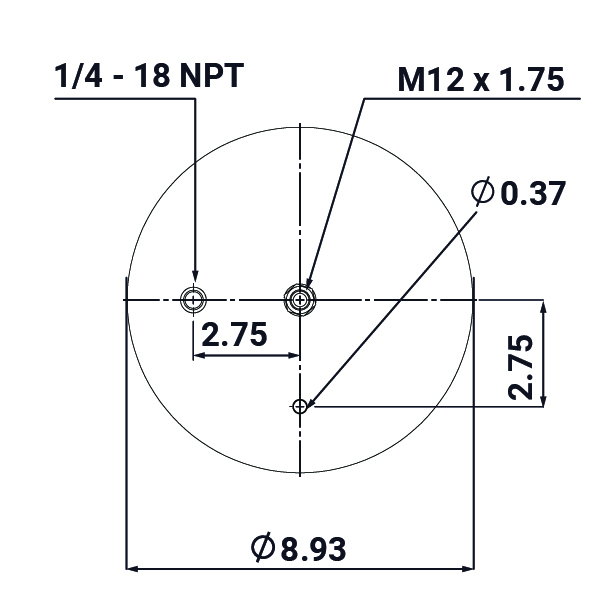

| Top Plate Ø (in) | 8.9 |
| Top Plate Hole/Stud Quantity | 2 |
| Top Plate C to C (in) | 2.8 |

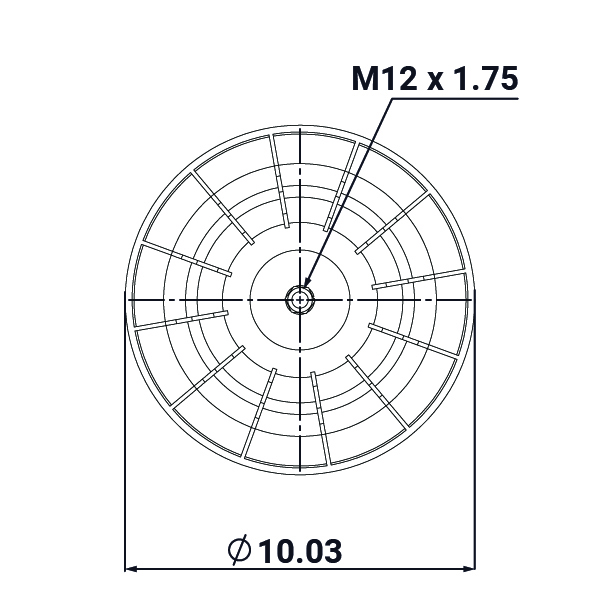

| Piston/Bottom Plate Ø (in) | 10 |
| Piston/Bottom Plate Alignment | Parallel |
| Piston/Bottom Plate Hole/Stud Quantity | 1 |
| Piston/Bottom Plate C to C (in) | N/A |
_01.jpg "AS1R-8468-C")
_02.jpg "AS1R-8468-C")
_03.jpg "AS1R-8468-C")
_04.jpg "AS1R-8468-C")
Parts Cross Reference
(click column headings to sort)
| OEM/Brand | Cross Reference | Application Notes |
|---|---|---|
| Automann | AB1DF23H-P1206 | |
| Continental | 9 10S-17 P 1206 | Composite |
| Continental | 75561 | Composite |
| Firestone | W01-M58-8468 | Composite |
| Firestone | W01-358-8468 | Common False Number |
| Goodyear | 1R12-1049 | Composite |
| Goodyear | 1R12-654 | |
| Mack | 21244322 | |
| Mack | 21669088 | |
| Road Choice | RC9MR17 8468 | |
| Sampa | SP 558468-KP | Composite |
| Triangle | AS-81206 | |
| TRP Parts | AS84680 | |
| Volvo | 21132004 | |
| Volvo | 21132005 |
