AS1R-8091-C - Air Spring, Rolling Lobe
AS1R-8091-C — Air Spring, Rolling Lobe
| Item | Description |
|---|---|
| ATRO # | AS1R-8091-C |
| Category | Suspension |
| Description | Air Spring, Rolling Lobe |
| Shipping Weight | 16.8 lbs |
| UPC Code | 751354050561 |
| Qty Per Vehicle | 2 |
| Documentation | |
| Warranty | U.S./Canada 3-Year; Export 1-Year |

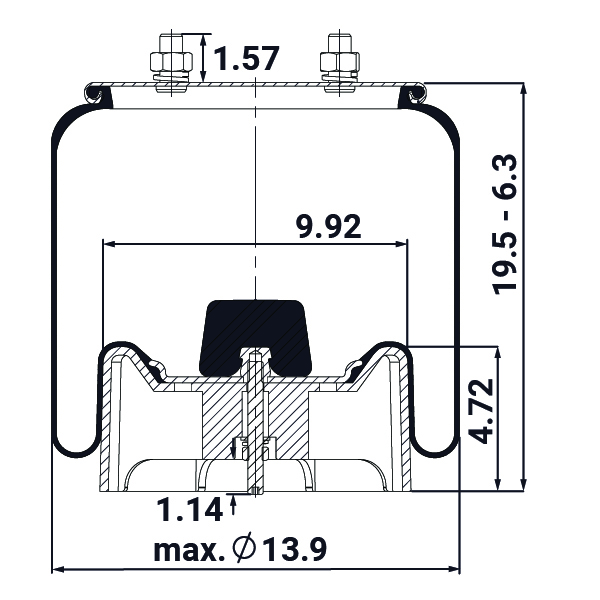

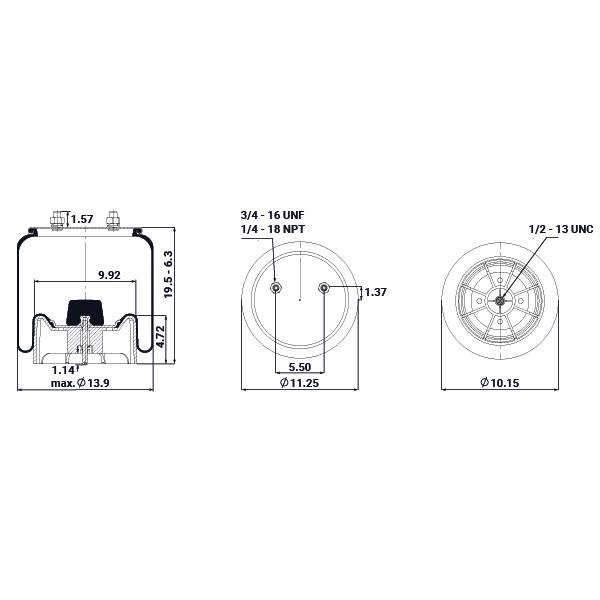

AS1R-8091-C Air Spring Technical Data
| Item | Description |
|---|---|
| Pallet Quantity | 36 |
| Type | Rolling Lobe |
| Piston Material | Composite |
| Bumper | Yes |
| Bracket | No |
| Diameter Max (in) | 13.9 |
| Height Max (in) | 19.5 |
| Height Min (in) | 6.3 |

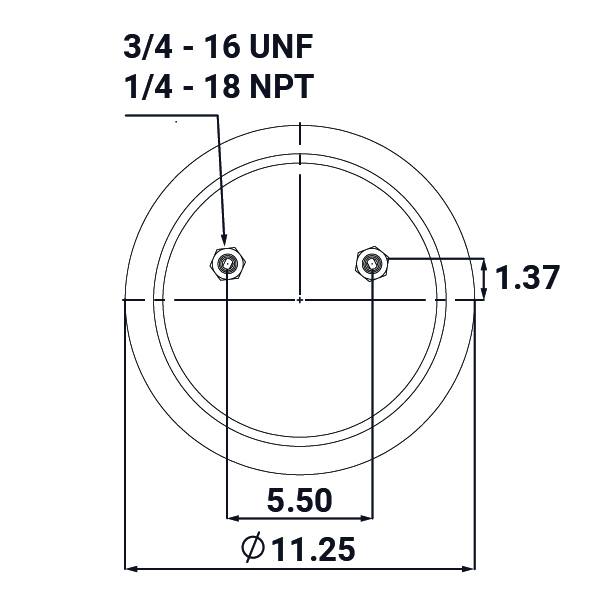

| Top Plate Ø (in) | 11.3 |
| Top Plate Hole/Stud Quantity | 2 |
| Top Plate C to C (in) | 5.5 |

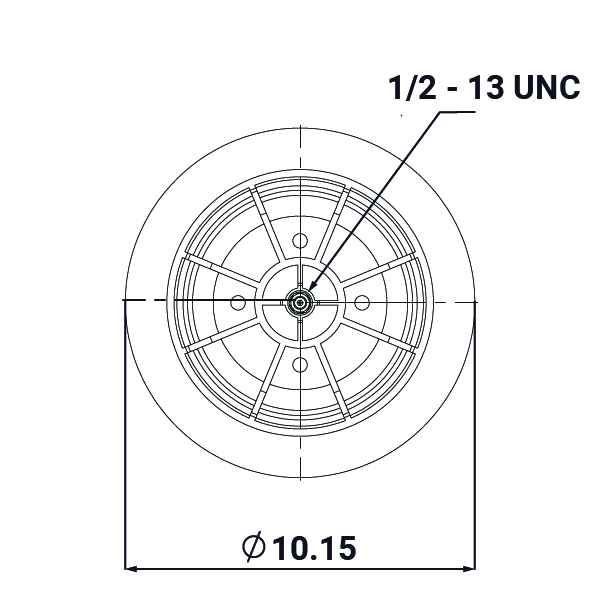

| Piston/Bottom Plate Ø (in) | 10.2 |
| Piston/Bottom Plate Alignment | Parallel |
| Piston/Bottom Plate Hole/Stud Quantity | 1 |
| Piston/Bottom Plate C to C (in) | N/A |
_01.jpg "AS1R-8091-C")
_02.jpg "AS1R-8091-C")
_03.jpg "AS1R-8091-C")
_04.jpg "AS1R-8091-C")
Parts Cross Reference
(click column headings to sort)
| OEM/Brand | Cross Reference | Application Notes |
|---|---|---|
| Automann | AB1DK28E-8091 | |
| Continental | 64421 | Composite |
| Continental | 11 10.5A-16 P 523 | Composite |
| Firestone | W01-358-8091 | Composite |
| Fleetpride | AS8091 | |
| Goodyear | 1R14-171 | Composite |
| Hendrickson | C-20901 | |
| Hendrickson | S20901 | INTRAAX AAT 25K. Reuse steel air spring disc |
| Hendrickson | S21784 | INTRAAX AAT 25K. Reuse steel air spring disc |
| International | 1R14-242 | |
| Meritor | A2258P1576 | |
| Road Choice | AS8091 | |
| Sampa | SP 558091-KP | Composite |
| Triangle | AS-8523 | |
| TRP Parts | AS80910 |
