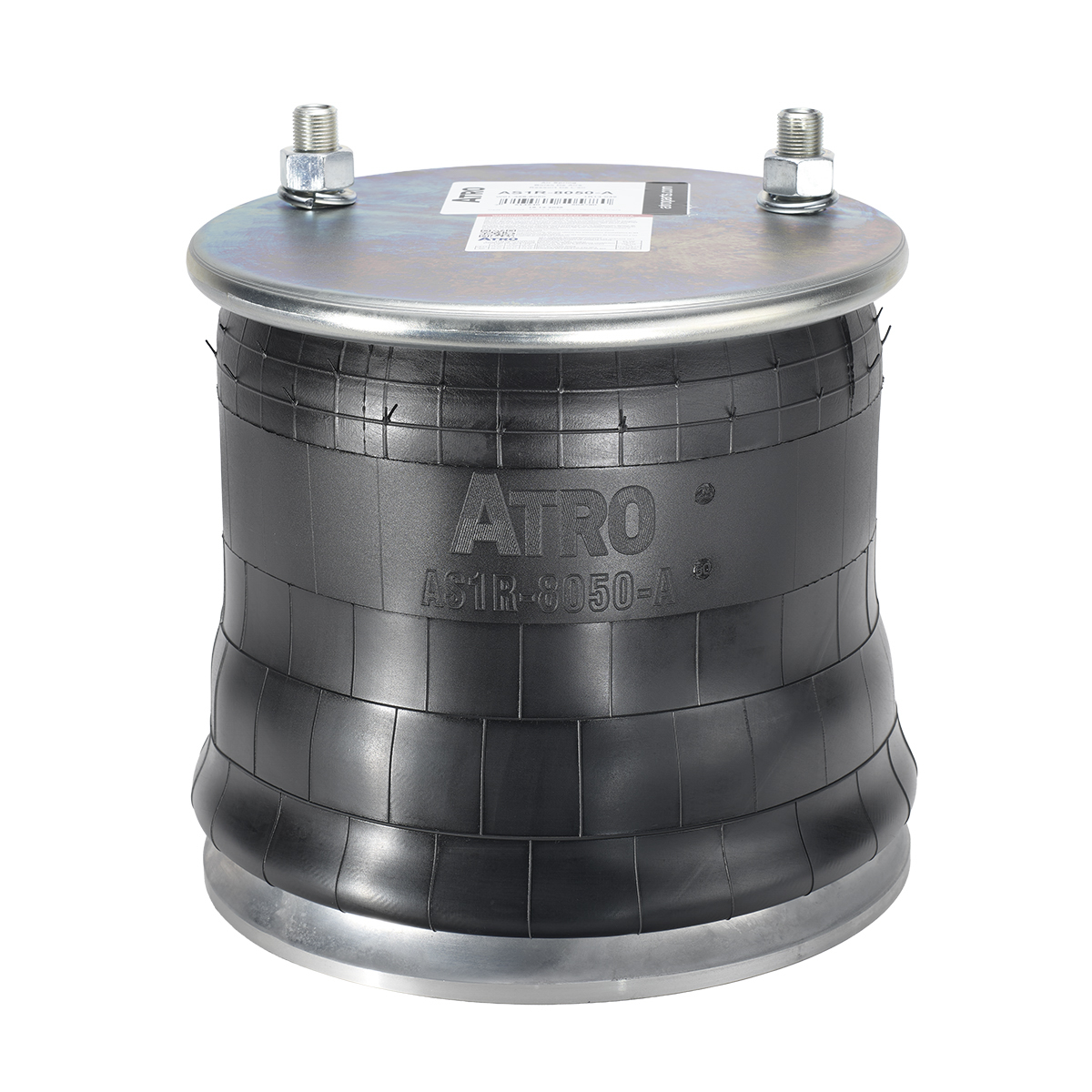

AS1R-8050-A - Air Spring, Rolling Lobe
AS1R-8050-A — Air Spring, Rolling Lobe
| Item | Description |
|---|---|
| ATRO # | AS1R-8050-A |
| Category | Suspension |
| Description | Air Spring, Rolling Lobe |
| Shipping Weight | 26.3 lbs |
| UPC Code | 751354050578 |
| Qty Per Vehicle | 2 |
| Documentation | |
| Warranty | U.S./Canada 3-Year; Export 1-Year |
AS1R-8050-A Air Spring Technical Data
| Item | Description |
|---|---|
| Pallet Quantity | 22 |
| Type | Rolling Lobe |

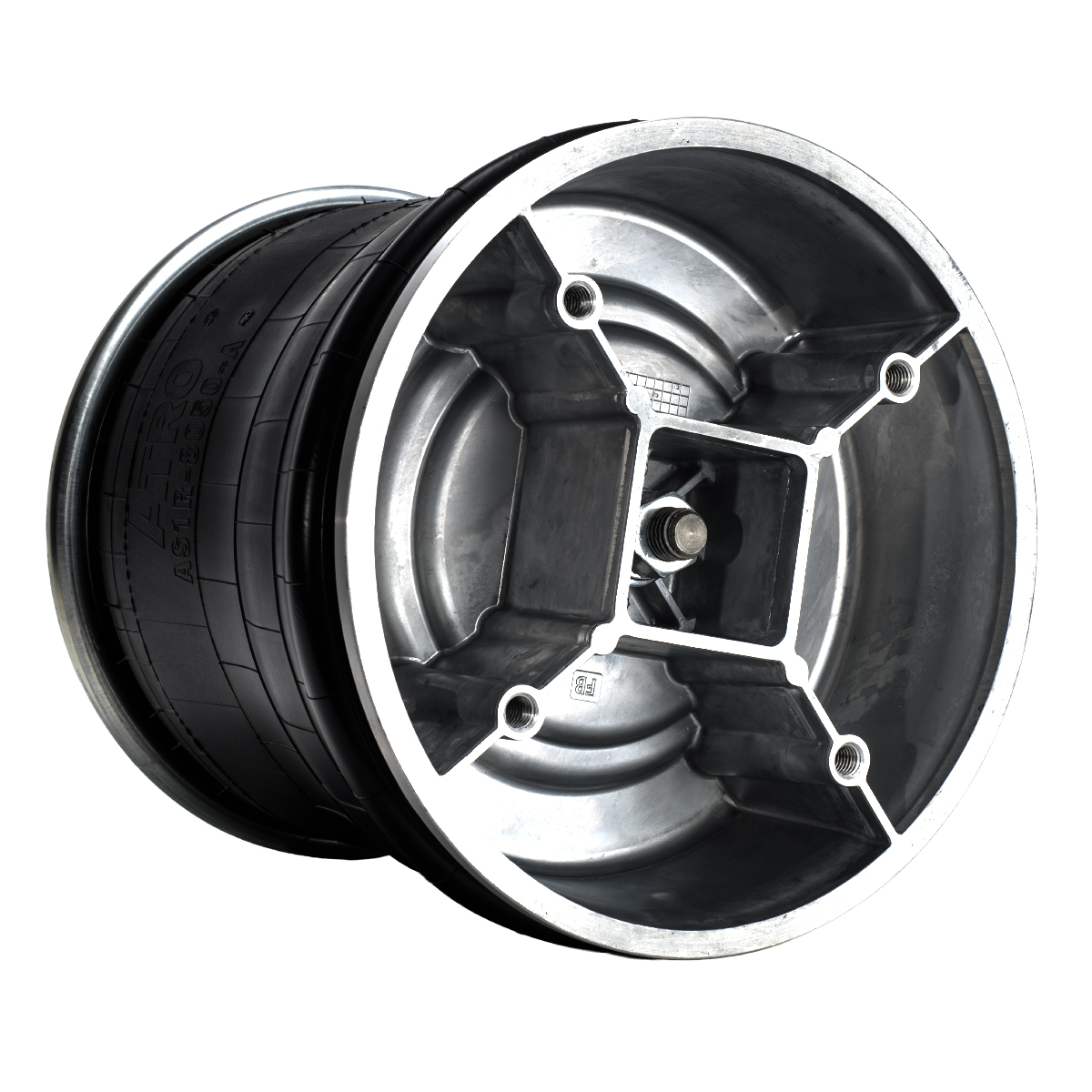

| Piston Material | Aluminum |
| Bumper | Yes |
| Bracket | No |

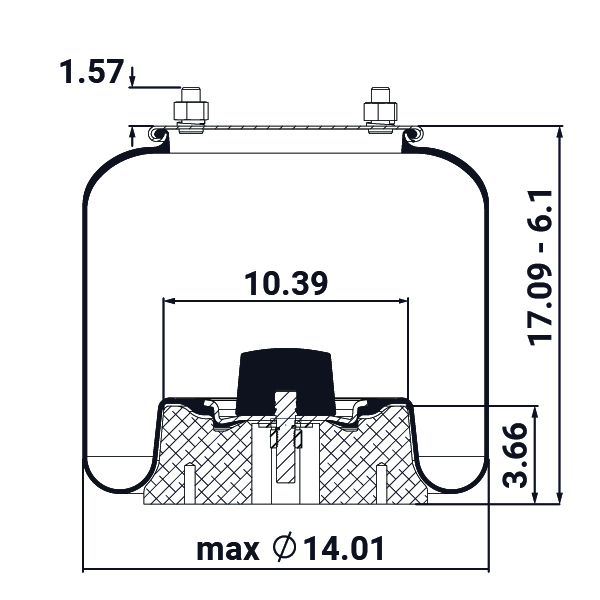

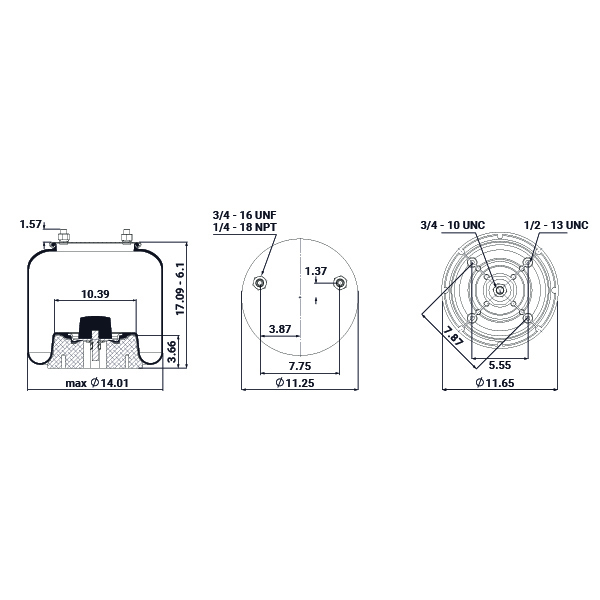

| Diameter Max (in) | 14 |
| Height Max (in) | 17.9 |
| Height Min (in) | 6.1 |

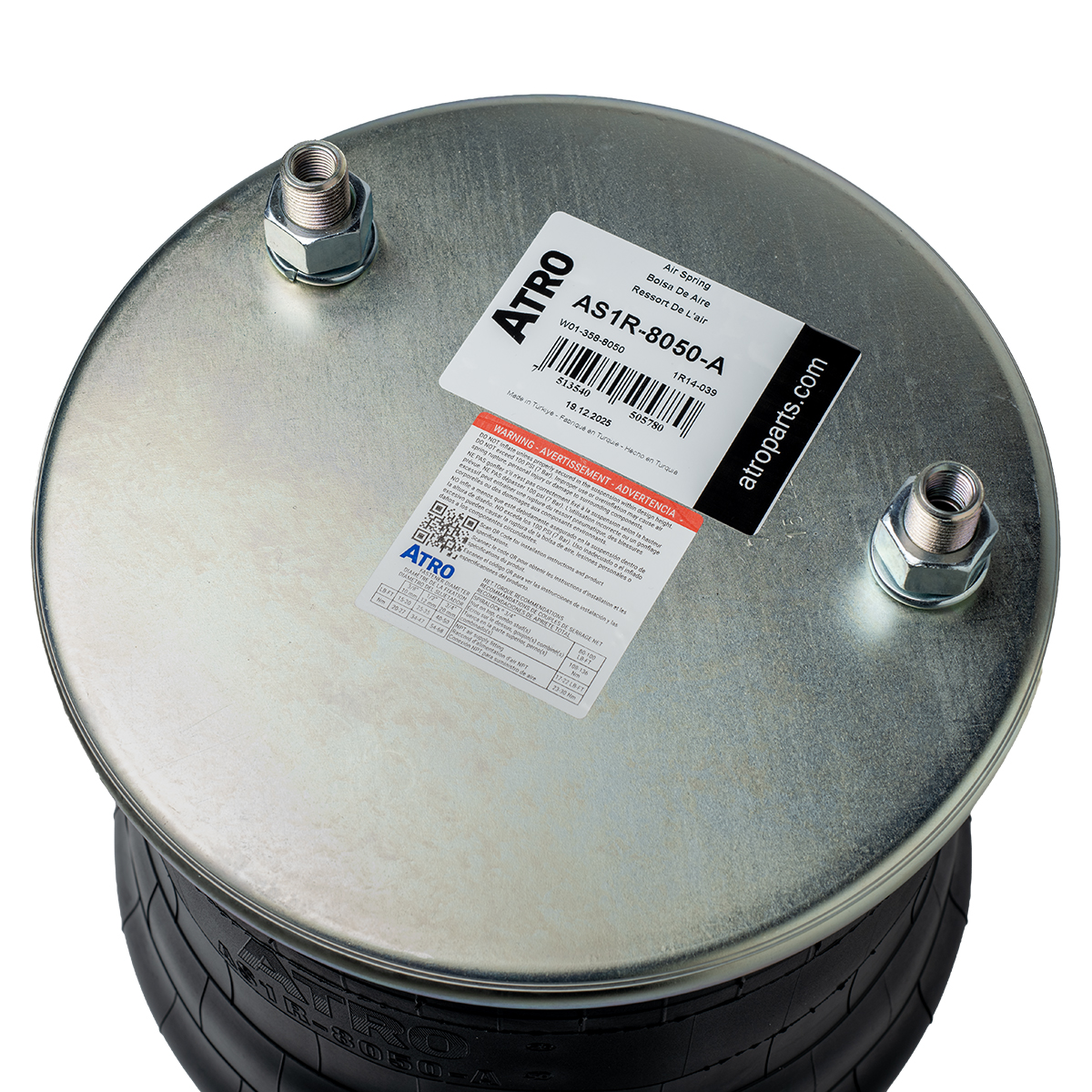

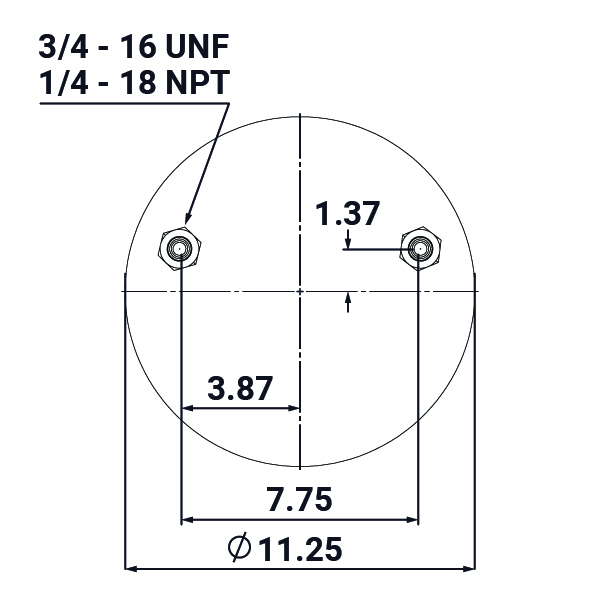

| Top Plate Ø (in) | 11.3 |
| Top Plate Hole/Stud Quantity | 2 |
| Top Plate C to C (in) | 7.8 |

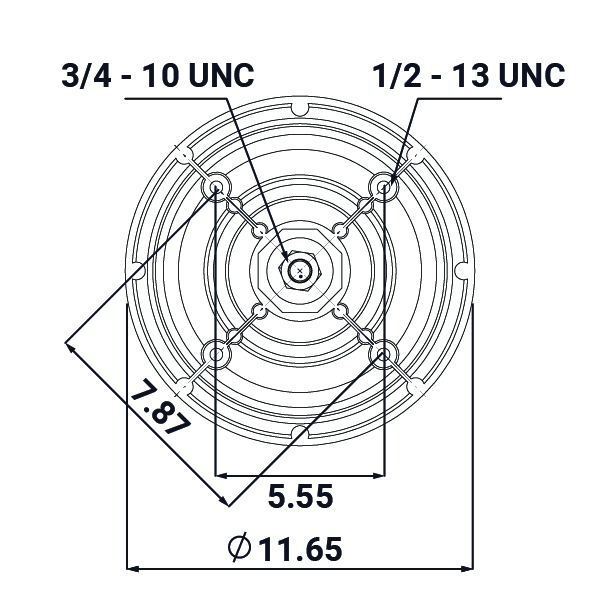

| Piston/Bottom Plate Ø (in) | 11.7 |
| Piston/Bottom Plate Alignment | 45° |
| Piston/Bottom Plate Hole/Stud Quantity | 4 |
| Piston/Bottom Plate C to C (in) | 5.6 |
_01.jpg "AS1R-8050-A")
_02.jpg "AS1R-8050-A")
_03.jpg "AS1R-8050-A")
_04.jpg "AS1R-8050-A")
Parts Cross Reference
(click column headings to sort)
| OEM/Brand | Cross Reference | Application Notes |
|---|---|---|
| Automann | AB1DK28A-8050 | |
| Continental | 11 10.5C-16 A 320 | Aluminum |
| Continental | 64254 | Aluminum |
| Cush | C-0294 | |
| Dayton | 352-8050 | |
| Firestone | W01-358-8050 | Aluminum |
| Firestone | W01-358-5523 | Near Cross Steel |
| Goodyear | 1R14-039 | Aluminum |
| Hendrickson | 36514-13 | |
| Hendrickson | B-12514-013 | |
| Hendrickson | B-4771 | |
| Hendrickson | S-4771 | HT300T, HS Series HS300 |
| International | 1685174C1 | |
| International | 1R14-241 | |
| Meritor | 201680 | |
| Meritor | S6002 | |
| Reyco | 23631-01 | |
| Sampa | SP 558050-K | Steel |
| Sampa | SP 558050-KA | Aluminum |
| TRP Parts | AS80500 | |
| TRP Parts | AS91210 | |
| Volvo | 3130498 | |
| Watson Chalin | AS-0039 |
