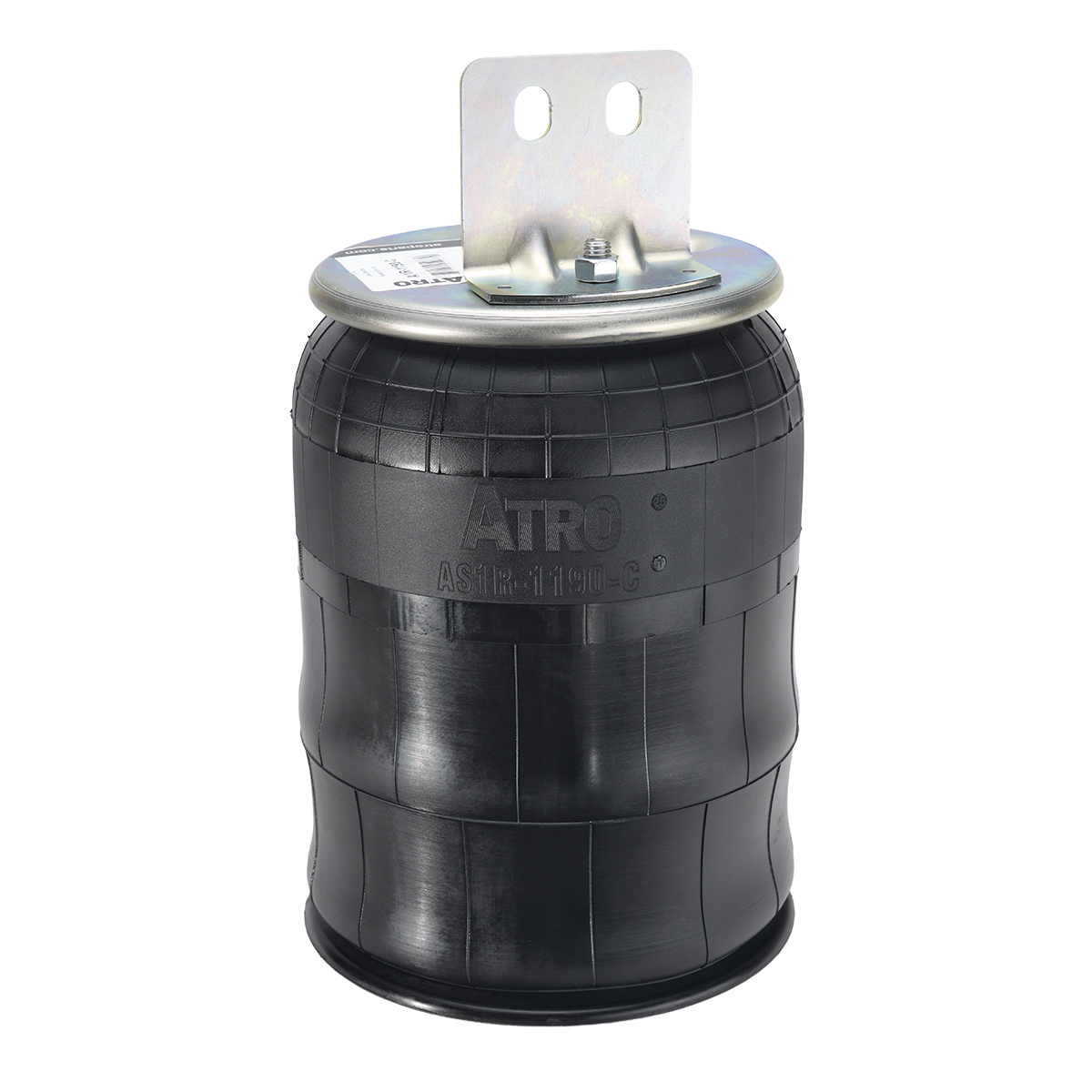

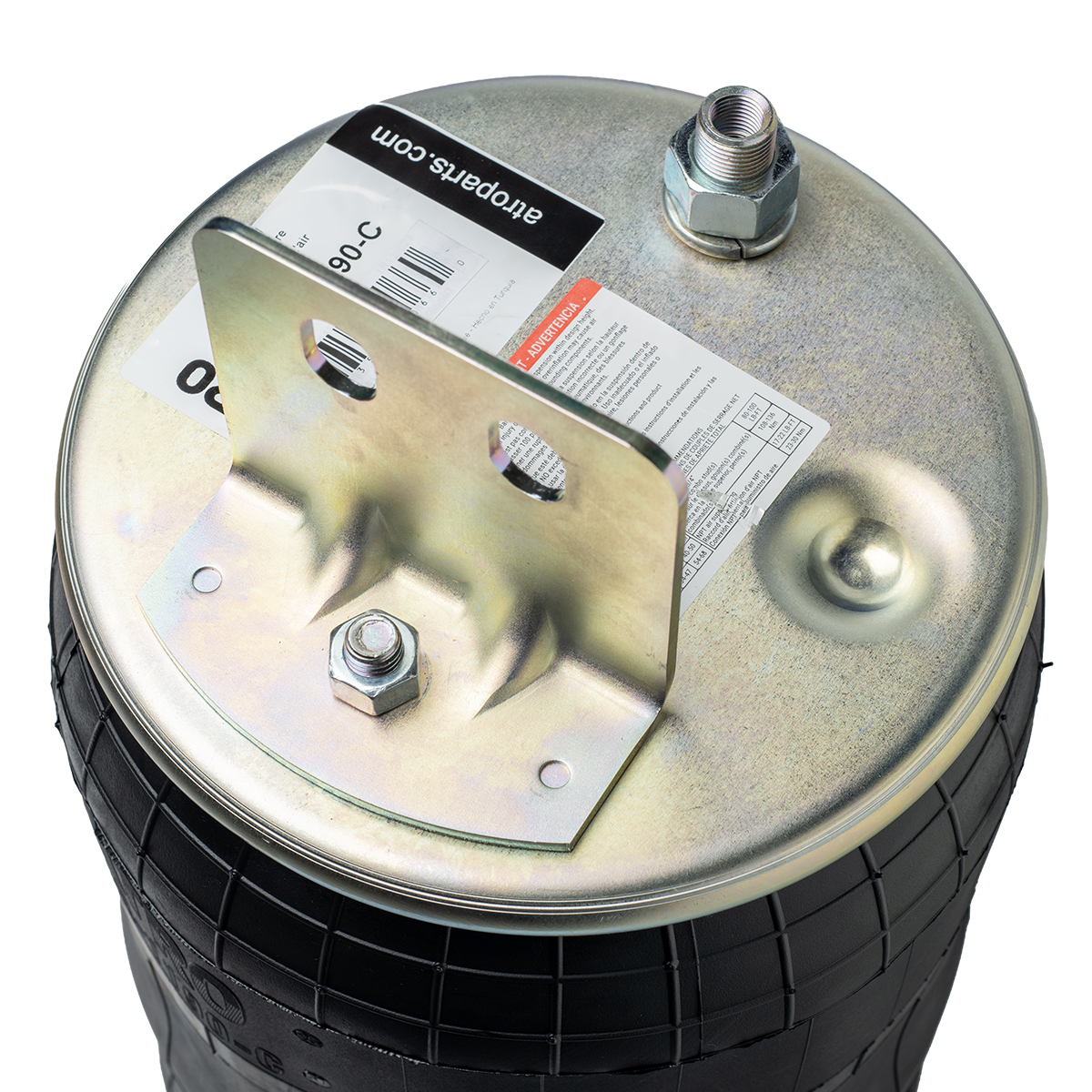

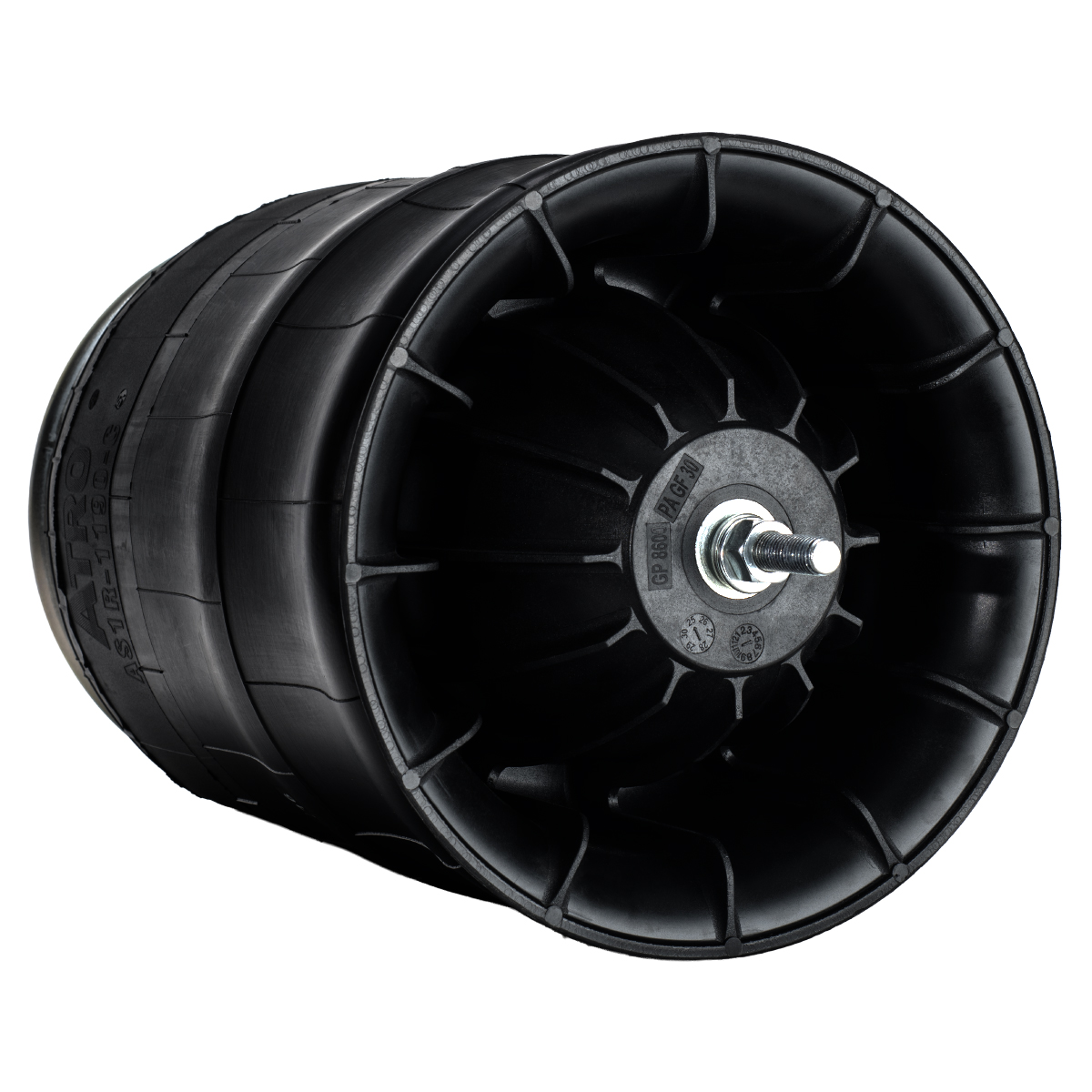

AS1R-1190-C - Air Spring, Rolling Lobe
AS1R-1190-C — Air Spring, Rolling Lobe
| Item | Description |
|---|---|
| ATRO # | AS1R-1190-C |
| Category | Suspension |
| Description | Air Spring, Rolling Lobe |
| Shipping Weight | 13.7 lbs |
| UPC Code | 751354050660 |
| Qty Per Vehicle | 2 |
| Documentation | |
| Warranty | U.S./Canada 3-Year; Export 1-Year |
AS1R-1190-C Air Spring Technical Data
| Item | Description |
|---|---|
| Pallet Quantity | 20 |
| Type | Rolling Lobe |
| Piston Material | Composite |
| Bumper | No |
| Bracket | Yes |
| Diameter Max (in) | 12.5 |
| Height Max (in) | 23.8 |
| Height Min (in) | 5.6 |
| Top Plate Ø (in) | 8.9 |
| Top Plate Hole/Stud Quantity | 2 |
| Top Plate C to C (in) | 5.9 |
| Piston/Bottom Plate Ø (in) | 10.1 |
| Piston/Bottom Plate Alignment | Parallel |
| Piston/Bottom Plate Hole/Stud Quantity | 1 |
| Piston/Bottom Plate C to C (in) | N/A |

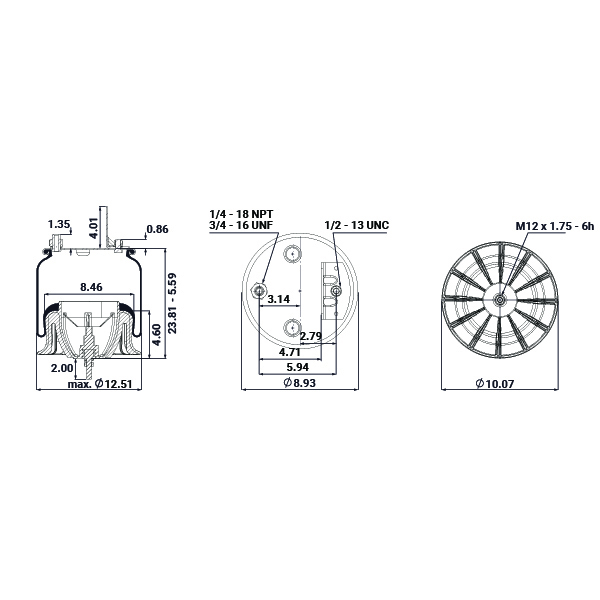

_01.jpg "AS1R-1190-C")

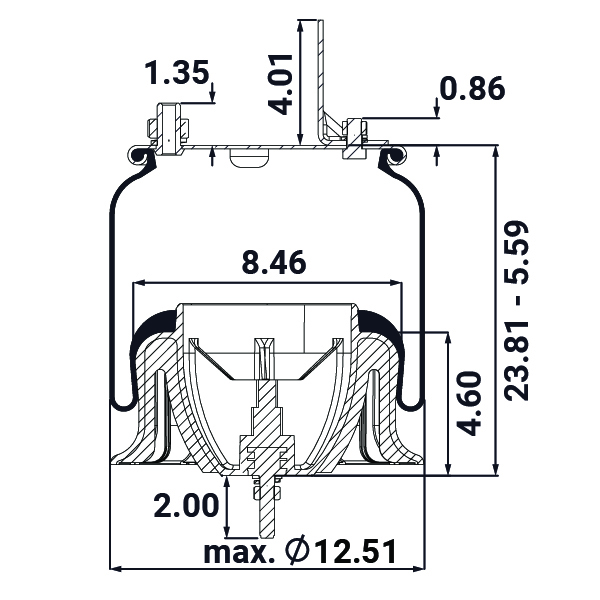

_02.jpg "AS1R-1190-C")

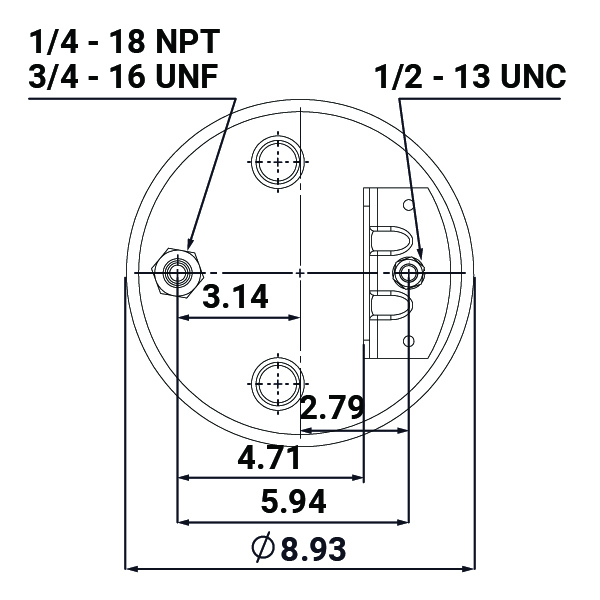

_03.jpg "AS1R-1190-C")

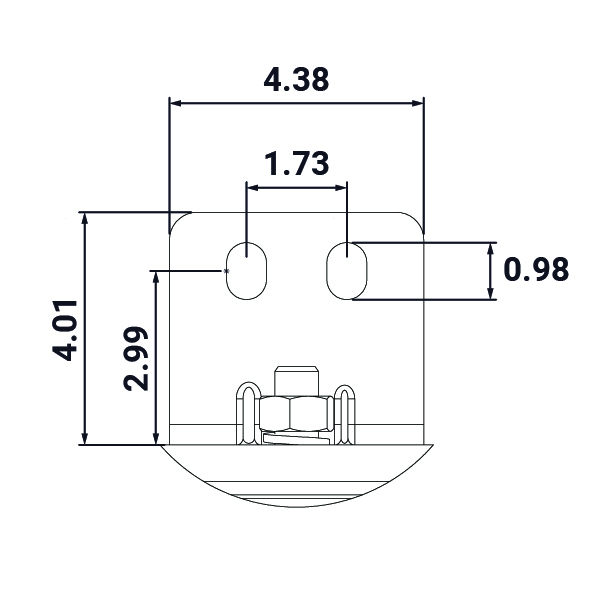

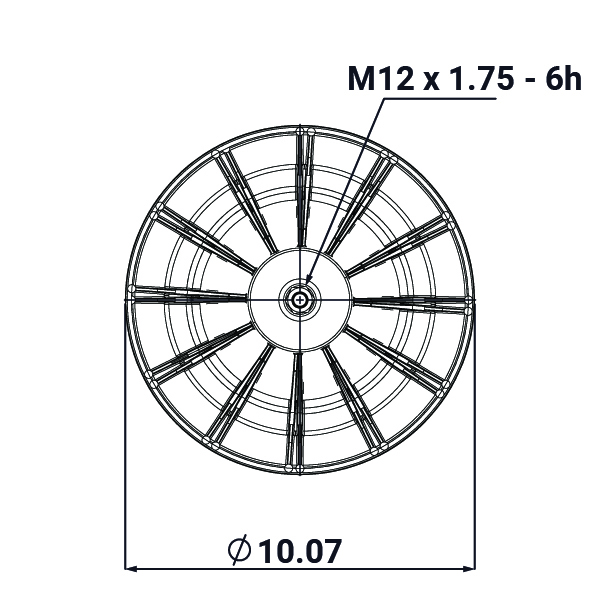

_04.jpg "AS1R-1190-C")
_05.jpg "AS1R-1190-C")
Parts Cross Reference
(click column headings to sort)
| OEM/Brand | Cross Reference | Application Notes |
|---|---|---|
| Automann | AB1DF23I-P1066 | |
| Continental | 73745 | Composite |
| Continental | 9 10S-18 P 1066 (BK) | Composite |
| Firestone | W01-358-9876 | Obsolete |
| Firestone | W01-358-1190 | Composite |
| Fleetpride | AS1190 | |
| Goodyear | 1R12-523 | Composite |
| International | 3541732C1 | Bead plate Bracket (Double Hole) 70-358-6064 |
| Road Choice | AS9876 | |
| Sampa | SP 551190-KP | Composite |
| Triangle | AS-81066 |
