SKS16001 - Spiral Kit - K160A
SKS16001 — Spiral Kit - K160A
| Item | Description |
|---|---|
| ATRO # | SKS16001 |
| Category | Steering |
| Description | Spiral Kit - K160A |
| Shipping Weight | 27.77 lbs |
| UPC Code | 751354048506 |
| Qty Per Vehicle | 1 |

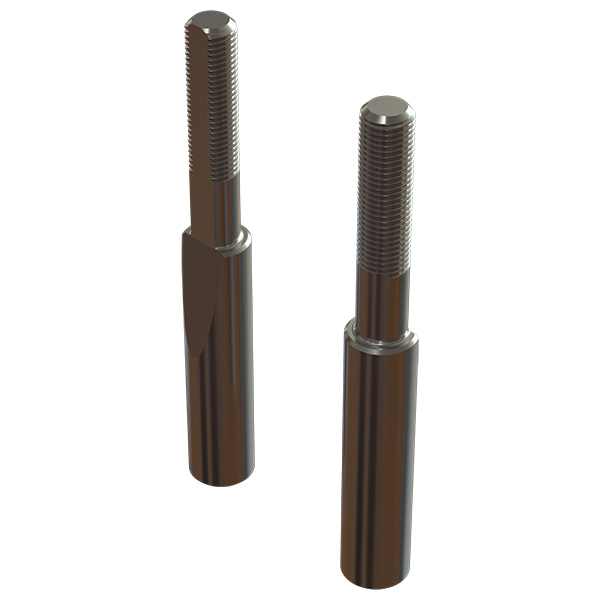

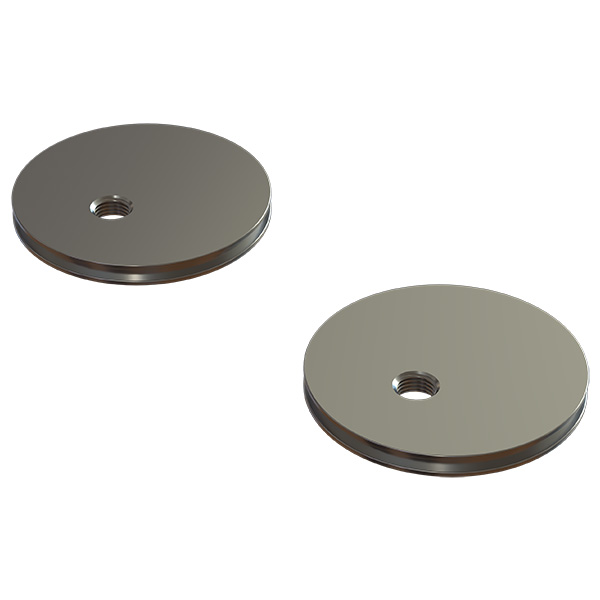

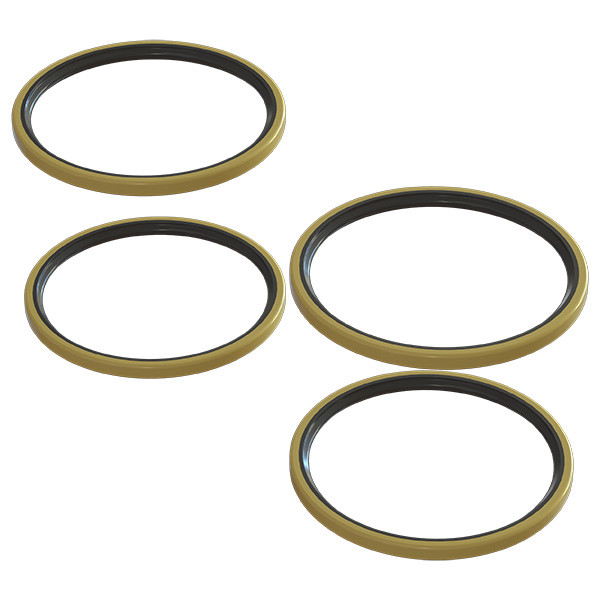

| Includes Kit Components | (2) Kingpin (4) Bushing (4) End Plate EP16001 (1) Bearing BRT216SP; (1) Bearing BRF216SP (1) Seal Kit SL16001-CON (2) Lock Pin LP16001 (2) Lock Pin LP981R-S (1) Shim and Hardware Kit BK16001 |
| Misc. Specs | Kingpin=9.75"X2.1250" - Double Lock Opposite Side Friction bearing-left side, Taper bearing-right side |
| Install Tool | Seal Driver SKPT16001 |
| Documentation | |
| Warranty | U.S./Canada 4-Year; Export 1-Year |
Parts Cross Reference
(click column headings to sort)
| OEM/Brand | Cross Reference | Application Notes |
|---|---|---|
| Automann | 460.543C | Near Cross LH Needle Bushing |
| Automann | 460.544C | RH Needle Bushing |
| Automann | 460.545 | Near Cross Needle Bushing |
| Dayton Parts | 300-354 | Near Cross Needle Bushing |
| Euclid | E-17676B | Bronze (Ream) |
| Freightliner | 6073300519K | Needle Bearing |
| Freightliner | P6073300419KZ | Obsolete |
| Freightliner | P6073300519KZ | Obsolete |
| Meritor | R201342 | Near Cross Composite |
| Meritor | R200322 | Near Cross Bronze (Ream) |
| Meritor | R202038 | Spiral (No-Ream) |
| Spicer | KPK1004 | Near Cross LH Needle Bushing |
| Spicer | KPK1005 | Near Cross RH Needle Bushing |
| Stemco | K160A | Spiral |
